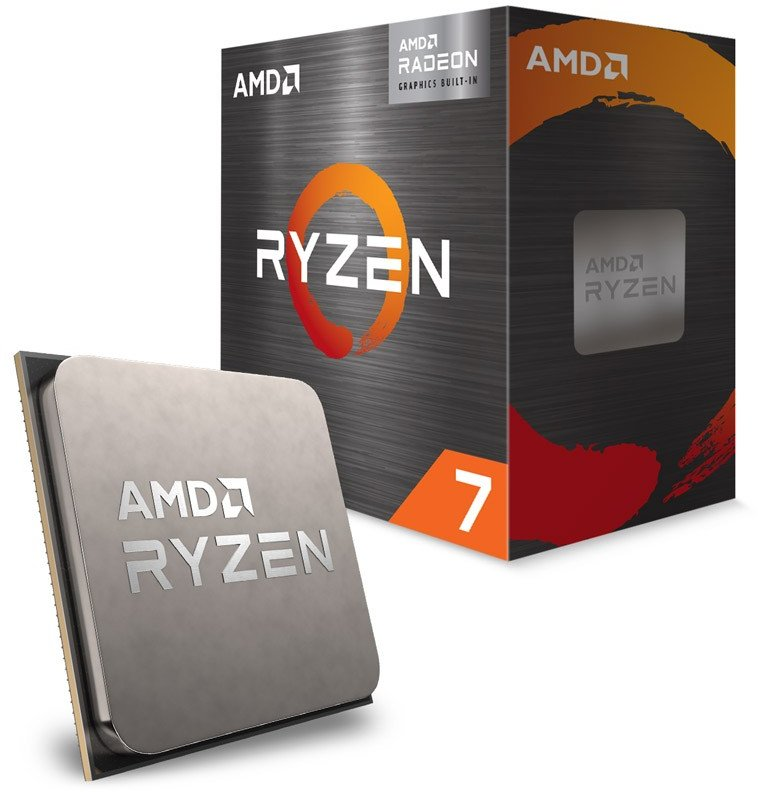

AMD Ryzen 7 5700G 8xCore, 3.8 GHz/4.6 GHz – BOX

AMD Ryzen™ 7 5700G Processor – Powerful Performance with Integrated Graphics

General Specifications
• Family: AMD Ryzen™ 7

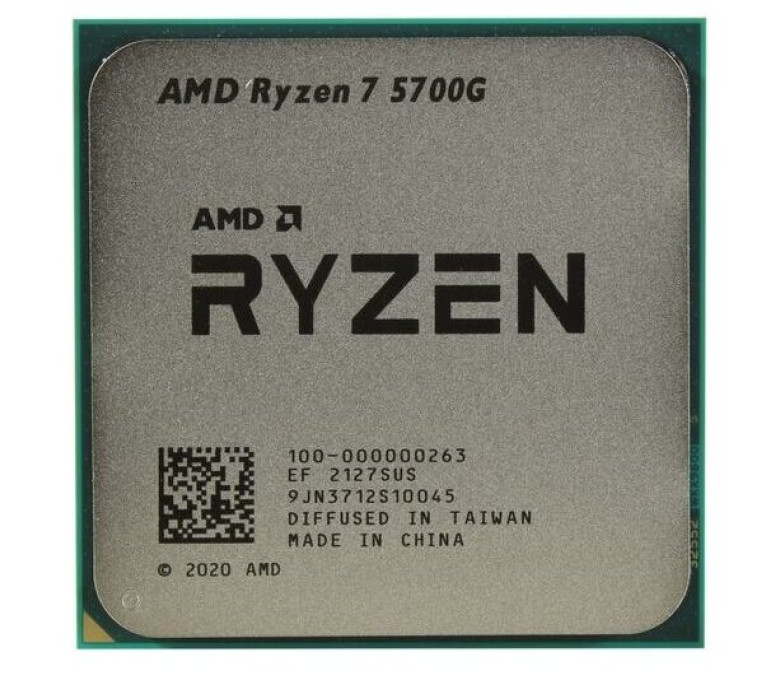

• Model Number: 5700G
• CPU Part Numbers:

• 100-000000263 (OEM/Tray Microprocessor)

• 100-100000263BOX (Boxed Microprocessor)
  • Base Clock: 3.8 GHz / 3800 MHz
  • Maximum Turbo Frequency: 4.6 GHz / 4600 MHz
  • Bus Speed: 8 GT/s PCIe

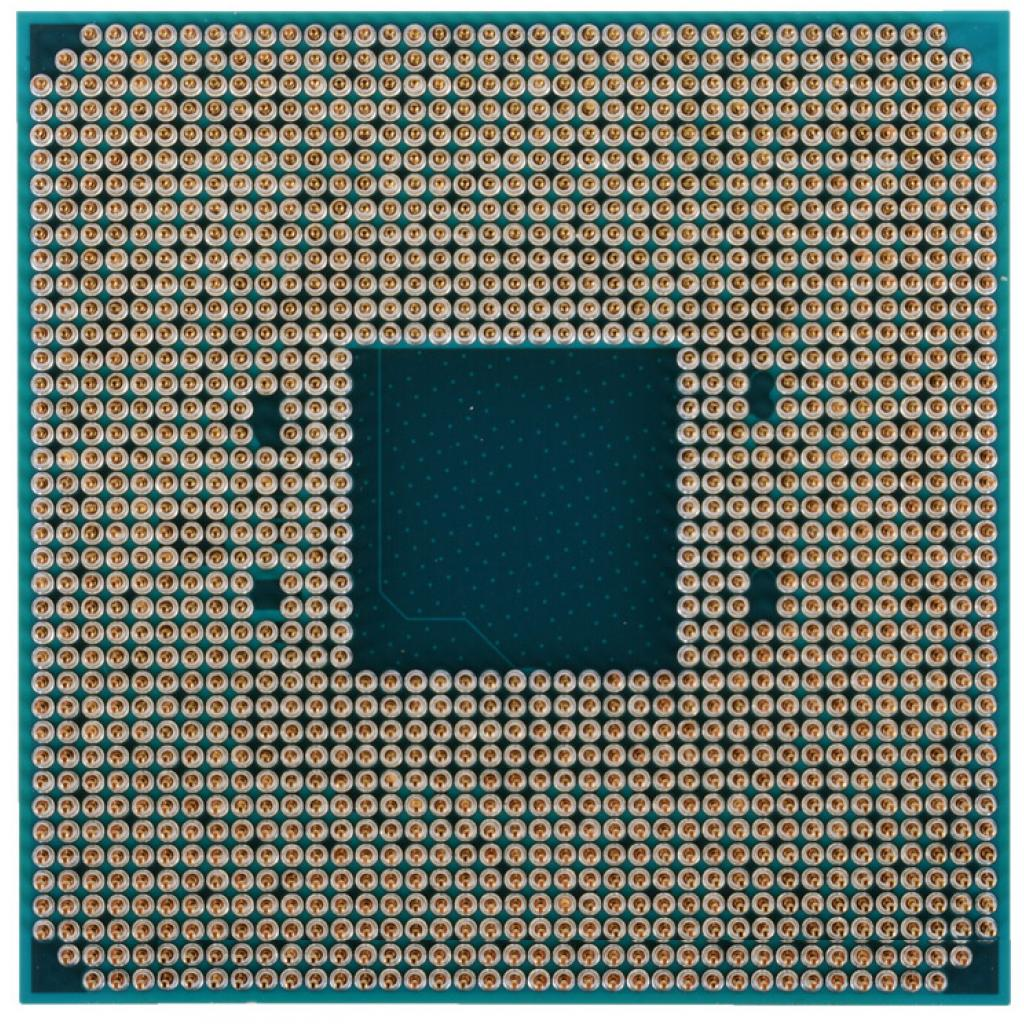

  • Package: 1331-pin lidded micro-PGA package
  • Socket: AM4
  • Size: 1.57″ x 1.57″ / 4cm x 4cm
  • Introduction Date:

• April 13, 2021 (OEM processors)

• August 5, 2021 (Retail processors)
  • Price at Introduction: $359 (at retail product launch)

Architecture / Microarchitecture
• Instruction Set: x86
• Microarchitecture: Zen 3
• Processor Codename: Cezanne
• Core Stepping: CZN-A0
• CPUID: A50F00
• Manufacturing Process: TSMC 0.007 micron FinFET process
• Transistor Count: 10.7 billion
• Die Size: 180mm² (CPU die)
• Data Width: 64 bit
• Number of CPU Cores: 8
• Number of Threads: 16
• Floating Point Unit: Integrated

Cache
• L1 Cache Size:

• 8 x 32 KB instruction caches

• 8 x 32 KB data caches
  • L2 Cache Size: 8 x 512 KB
  • L3 Cache Size: 16 MB

Memory Support
• Physical Memory: Up to 128 GB
• Memory Controller:

• Memory Channels (Total): 2

• Supported Memory: DDR4-3200

Extensions & Technologies
• MMX Instructions
• SSE (Streaming SIMD Extensions)
• SSE2 / SSE3 / SSSE3 / SSE4.1 + SSE4.2
• SSE4a
• AES (Advanced Encryption Standard) Instructions
• AVX (Advanced Vector Extensions)
• AVX2
• BMI (Bit Manipulation Instructions)
• F16C (16-bit Floating-Point Conversion Instructions)
• FMA3 (3-operand Fused Multiply-Add Instructions)
• SHA (Secure Hash Algorithm Extensions)
• AMD64 (AMD 64-bit Technology)
• SMT (Simultaneous Multi-Threading)
• AMD-V (AMD Virtualization Technology)
• Precision Boost 2

Integrated Graphics
• GPU Type: Radeon
• GPU Microarchitecture: Vega
• Shader Cores: 512
• Maximum Frequency (MHz): 2000
• Display Controller: DisplayPort / HDMI

Electrical / Thermal Parameters
• Maximum Operating Temperature: 95°C
• Thermal Design Power (TDP): 65W
