Asus AMD Radeon RX 7800 XT Dual OC 16GB GDDR6

ASUS Dual AMD Radeon™ RX 7800 XT OC Edition – 16GB GDDR6 – PCIe 4.0 Gaming Power

High-Performance Gaming Meets Efficiency and Reliability

The ASUS Dual AMD Radeon RX 7800 XT OC Edition delivers top-tier 1440p and 4K gaming performance, powered by 3840 stream processors and the advanced AMD RDNA™ 3 architecture. Engineered for serious gamers and creators, this card features 16GB of high-speed GDDR6 memory on a 256-bit interface, with support for the latest display technologies and cooling enhancements that ensure long-term durability and silent operation.

Core Specifications:

• Graphics Engine: AMD Radeon RX 7800 XT

• Architecture: AMD RDNA™ 3

• Stream Processors: 3840

• Bus Standard: PCI Express 4.0

• Video Memory: 16GB GDDR6

• Memory Interface: 256-bit

• Memory Speed: 19.5 Gbps

• Digital Max Resolution: 7680 x 4320

Clock Speeds:

• OC Mode: Up to 2565 MHz (Boost Clock) / Up to 2254 MHz (Game Clock)

• Default Mode: Up to 2475 MHz (Boost Clock) / Up to 2169 MHz (Game Clock)

• Base OC Clock: Up to 2520 MHz / Game Clock: 2213 MHz

Display Outputs:

• 1 x HDMI™ 2.1

• 3 x DisplayPort™ 2.1

• Maximum Displays Supported: 4

• HDCP Support: Yes, v2.3

Build & Cooling Technology:

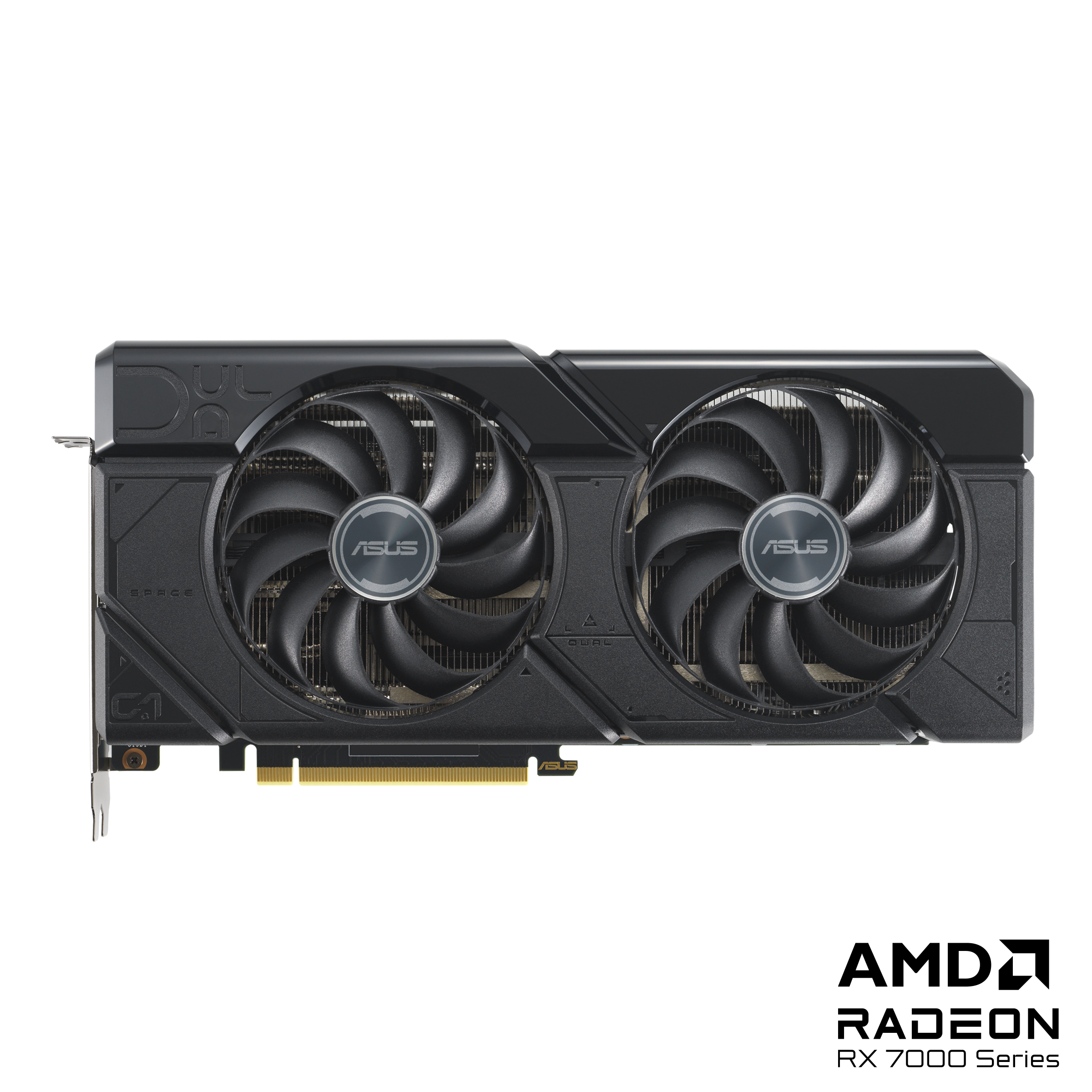

• Cooling System: Dual Fan Design

• Dual Ball Fan Bearings – Up to 2x longer lifespan than sleeve bearing designs

• Auto-Extreme Technology – Precision manufacturing for enhanced durability

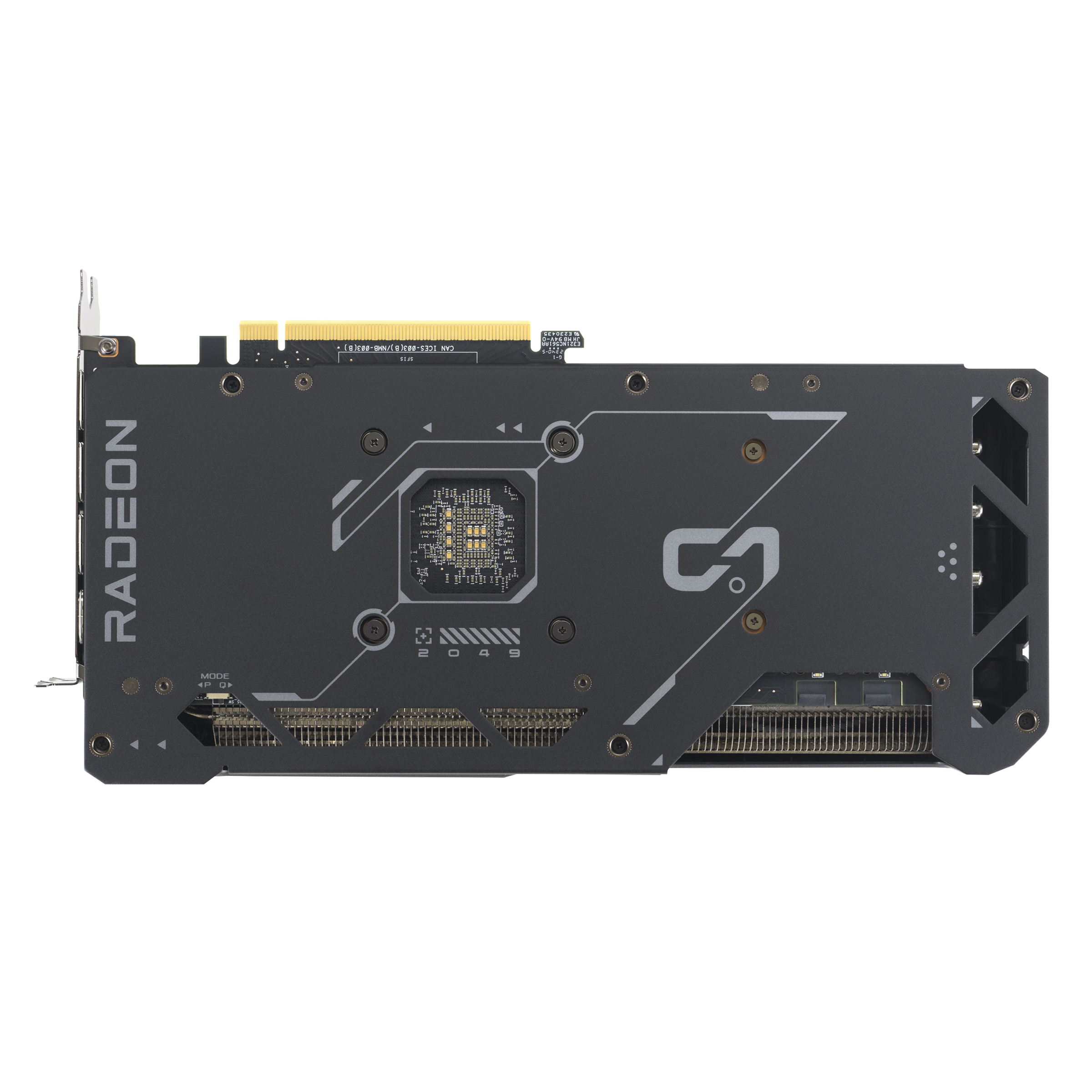

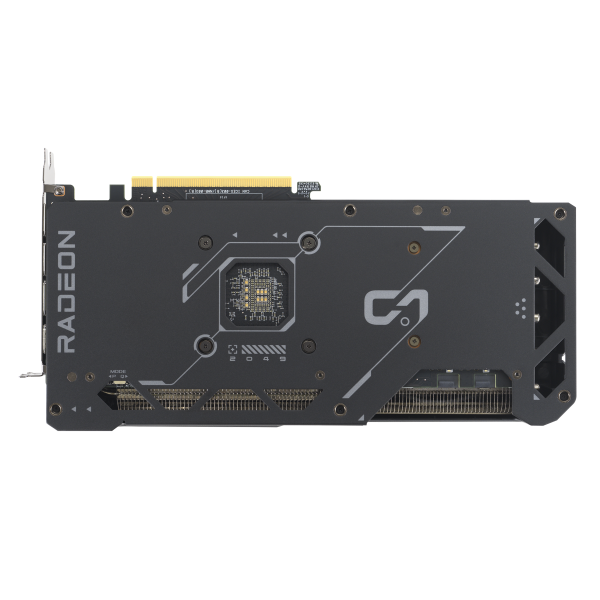

• Protective Backplate – Prevents PCB flex and damage

• Slot Design: 2.47-slot

• Dimensions: 279.9 x 133.9 x 49.3 mm (11.02 x 5.27 x 1.94 inch)

Power & System Requirements:

• Power Connectors: 2 x 8-pin

• Recommended PSU: 750W

Software & Accessories:

• Included:

  • 1 x Thank You Card

  • 1 x Speedsetup Manual

• Software: ASUS GPU Tweak III for real-time performance tuning, thermal control, and system monitoring

Advanced Features:

• DirectX® 12 Ultimate and OpenGL® 4.6 support

• No Crossfire / NVLink support – Fully optimized as a standalone powerhouse
