ASUS ROG Strix B650E-F Gaming WiFi AM5 DDR5 ATX

ASUS ROG STRIX B650E-F GAMING WIFI (ATX, AMD AM5, DDR5, WiFi 6E)

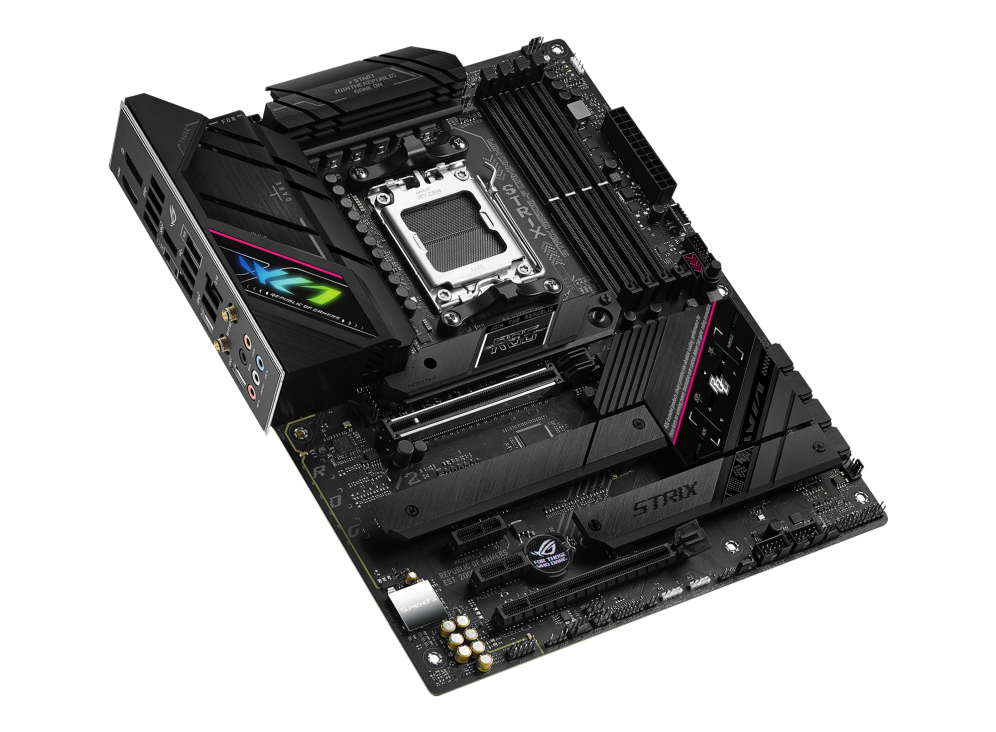

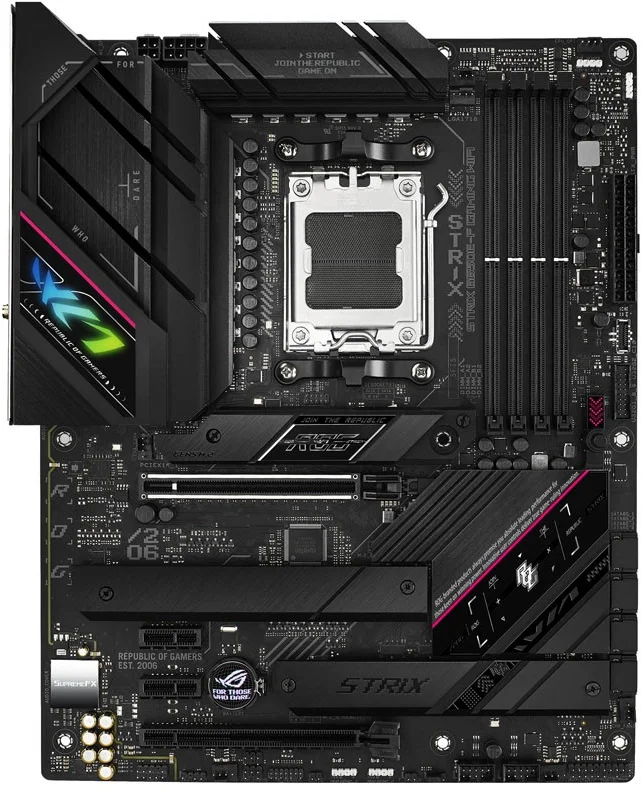

The ROG STRIX B650E-F GAMING WIFI is a high-performance ATX motherboard engineered for demanding gamers and power users. Designed for the AM5 socket, it supports AMD Ryzen 9000, 8000, and 7000 series desktop processors, delivering next-gen performance on the AMD B650 chipset.

Equipped with four DDR5 DIMM slots, it supports up to 192GB of high-speed memory, with frequencies up to DDR5-8000+ (OC), and benefits from dual-channel architecture, EXPO™ profiles, and OptiMem II for enhanced memory stability. Graphics output includes 1x DisplayPort 1.4 (8K@60Hz) and 1x HDMI 2.1 (4K@60Hz).

For GPU and expansion, it offers:

• 1x PCIe 5.0 x16 (Ryzen 9000/7000),

• 1x PCIe 4.0 x16 (Ryzen 8000, supports x8/x4),

• 1x PCIe 4.0 x16 (B650 chipset, x4),

• 2x PCIe 4.0/3.0 x1 slots.

Storage options are comprehensive with 3x M.2 slots and 4x SATA 6Gb/s ports:

• M.2_1 supports PCIe 5.0 x4 (Ryzen 9000/7000), PCIe 4.0 x4 (Ryzen 8000),

• M.2_2 supports PCIe 4.0 x4 or x2,

• M.2_3 (B650) supports PCIe 4.0 x4.

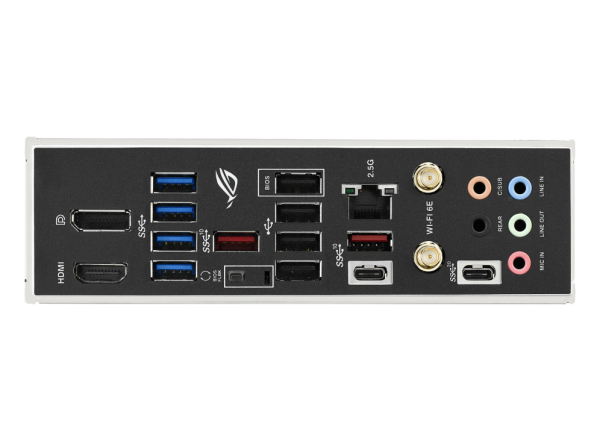

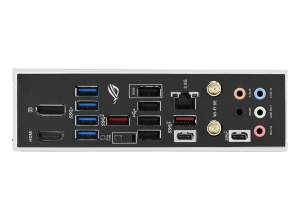

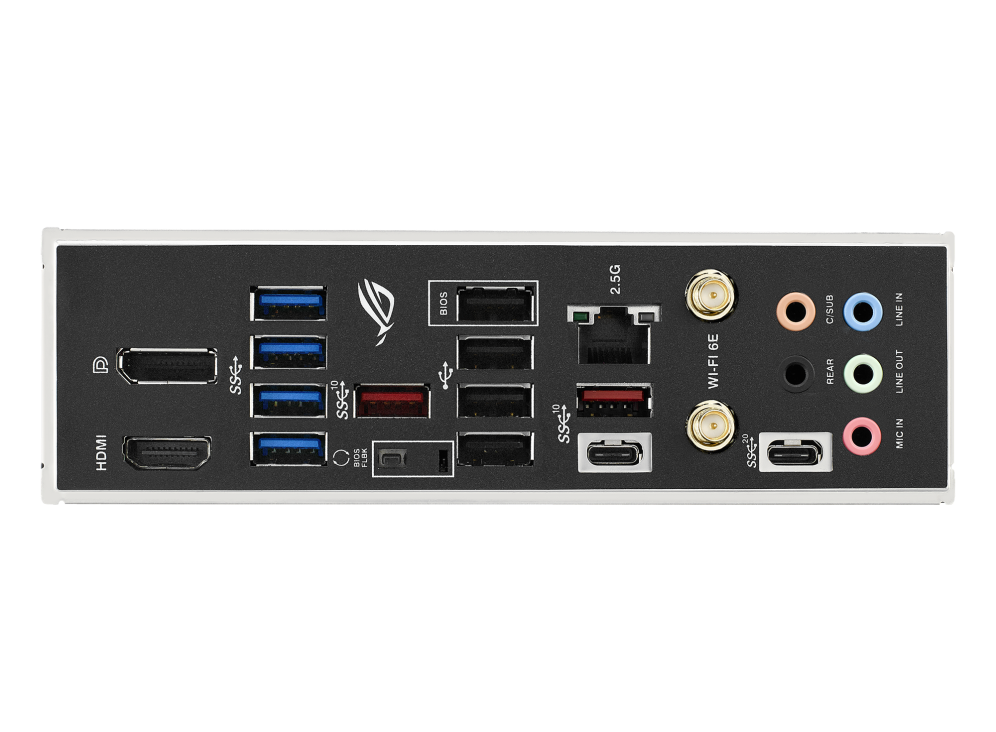

Networking includes Intel 2.5Gb Ethernet and Wi-Fi 6E (2×2) with Bluetooth 5.2. The rear I/O delivers 12 USB ports (including USB 3.2 Gen 2×2 Type-C), DisplayPort, HDMI, 5x audio jacks, and BIOS FlashBack™. Internal USB includes USB 3.2 Gen 2 (Type-C), USB 3.2 Gen 1, and USB 2.0 headers.

For audio, it features ROG SupremeFX ALC4080 7.1 HD Audio, enhanced with Savitech SV3H712 AMP, premium capacitors, shielding, and 32-bit/384kHz playback.

Cooling and power connectors:

• 1x CPU fan, 1x CPU OPT, 1x AIO pump, 4x chassis fan headers,

• 24-pin ATX, 8-pin + 4-pin 12V power connectors.

Other highlights:

• Q-Design features (Q-Latch, Q-Release, Q-DIMM),

• Pre-mounted I/O shield, SafeSlot, SafeDIMM,

• AURA Sync RGB with 3x ARGB Gen 2 headers and 1x RGB header,

• ASUS thermal solution with VRM & M.2 heatsinks.

Bundled with exclusive ROG software including GameFirst VI, Sonic Studio III, DTS Sound Unbound, and Armoury Crate. BIOS is 256Mb UEFI AMI with EZ Mode and FlashBack™.

Form Factor: ATX (30.5 x 24.4 cm)
OS Support: Windows 10/11 64-bit
Accessories: Wi-Fi antennas, SATA cables, M.2 Q-Latch, thermal pad, ROG keychain, stickers, cable ties, and user manual.
