Nintendo Switch OLED Model Mario™ Red Edition

Nintendo Switch – OLED Model: Mario Red Edition

Start your adventure in vibrant style with the Nintendo Switch – OLED Model: Mario Red Edition, a limited-edition console celebrating the iconic world of Mario. This special version includes a console, dock, and Joy-Con™ controllers in bold Mario Red, featuring a unique Mario silhouette on the back of the dock and hidden coins for a playful touch!

Technical Specifications & Key Features:

SIZE & WEIGHT
• Dimensions (with Joy-Con): 102 mm (H) × 242 mm (W) × 13.9 mm (D)
• Maximum Thickness (analog stick tip to ZL/ZR top): 28.4 mm
• Weight: Approx. 320 g (Approx. 420 g with Joy-Con controllers attached)

DISPLAY
• Type: 7.0-inch OLED capacitive touchscreen
• Resolution: 1280 × 720 pixels

CPU & STORAGE
• Processor: NVIDIA Custom Tegra
• Internal Storage: 64 GB (portion reserved for system files)

COMMUNICATION & CONNECTIVITY
• Wi-Fi: IEEE 802.11 a/b/g/n/ac
• Bluetooth: Version 4.1
• USB Connector: USB Type-C™ (charging and dock connection)
• Audio Jack: 3.5 mm 4-pole stereo mini plug (CTIA standard)
• Game Card Slot: Compatible only with Nintendo Switch game cards
• microSD Card Slot: Supports microSD, microSDHC, microSDXC*
• *microSDXC cards require a system update via internet

AUDIO & VIDEO
• Video Output:
– TV Mode: up to 1920 × 1080 pixels, 60 fps via HDMI
– Handheld/Tabletop: up to 1280 × 720 pixels (native screen resolution)
• Audio Output: 5.1 channel Linear PCM (via HDMI in TV Mode)
• Speakers: Stereo

CONTROLS & SENSORS
• POWER button / Volume buttons
• Accelerometer, Gyroscope, Brightness Sensor

OPERATING CONDITIONS
• Temperature: 5 – 35°C
• Humidity: 20 – 80%

BATTERY & POWER
• Battery Type: Built-in lithium-ion, 4310 mAh (non-removable)
• Battery Life: Approx. 4.5 – 9.0 hours
– e.g. approx. 5.5 hours playing The Legend of Zelda: Breath of the Wild
• Charging Time: Approx. 3 hours (in Sleep Mode)

ENERGY CONSUMPTION (ESTIMATED)
• TV Mode:
– Active Gaming: 6 W
– HD Streaming: 5 W
– HOME Menu: 3 W
– Sleep Mode (Wi-Fi on): 0.3 W (max 0.5 W)
– Sleep Mode (LAN on): 2.2 W
– Power Off: 0.3 W (max 0.5 W)

• Handheld/Tabletop Mode:
– Active Gaming: 4 W
– HD Streaming: 3 W
– HOME Menu: 2 W
– Sleep Mode (Wi-Fi on): 0.03 W
– Power Off: <0.01 W

• Estimated Annual Consumption: 6 kWh* / 21 kWh*
(*depending on usage type)

THREE MODES IN ONE CONSOLE
• TV Mode: Dock the console for HD gaming on your TV
• Tabletop Mode: Flip out the stand and share the screen for multiplayer fun

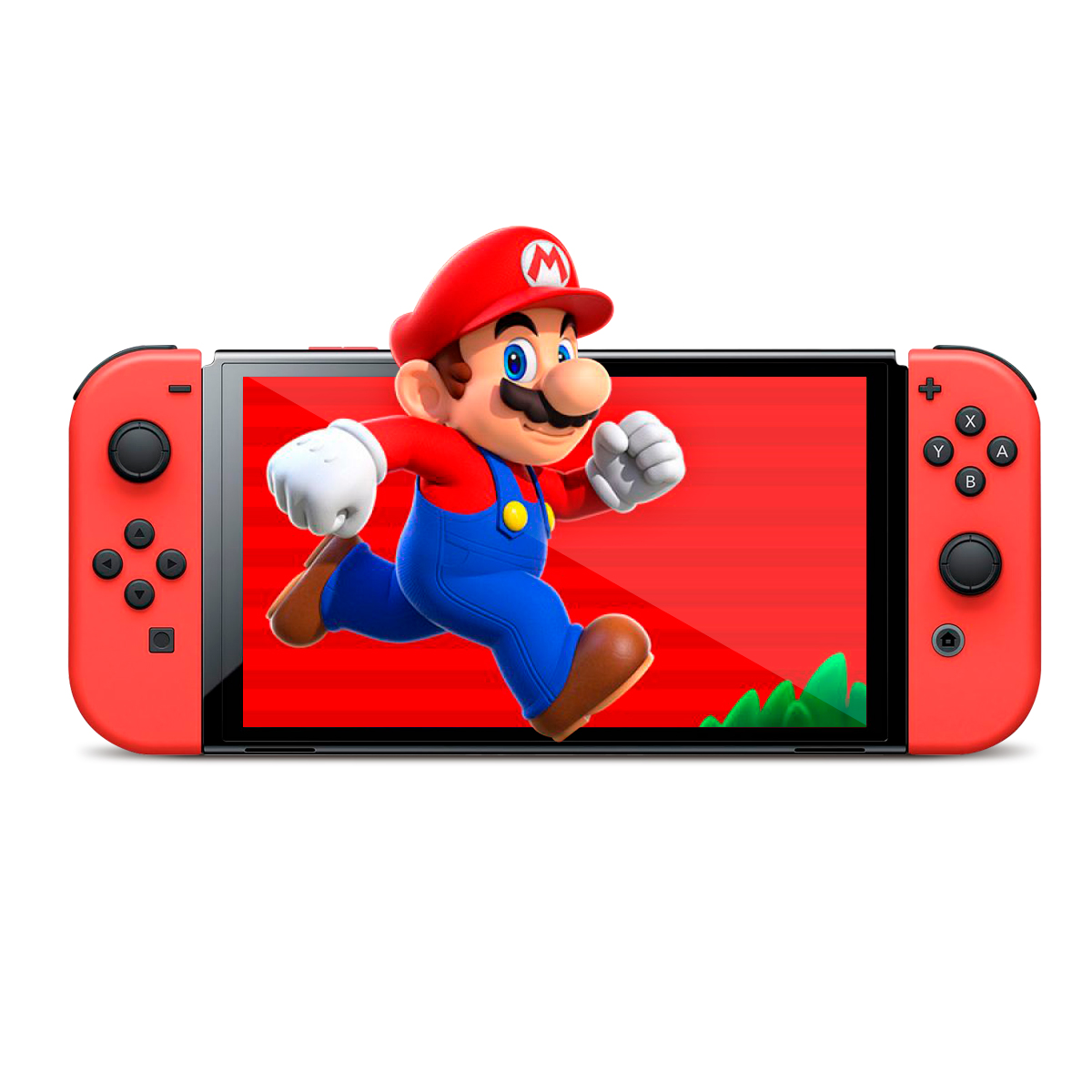

• Handheld Mode: Take it anywhere with the attached Joy-Con™ controllers and 7-inch OLED screen

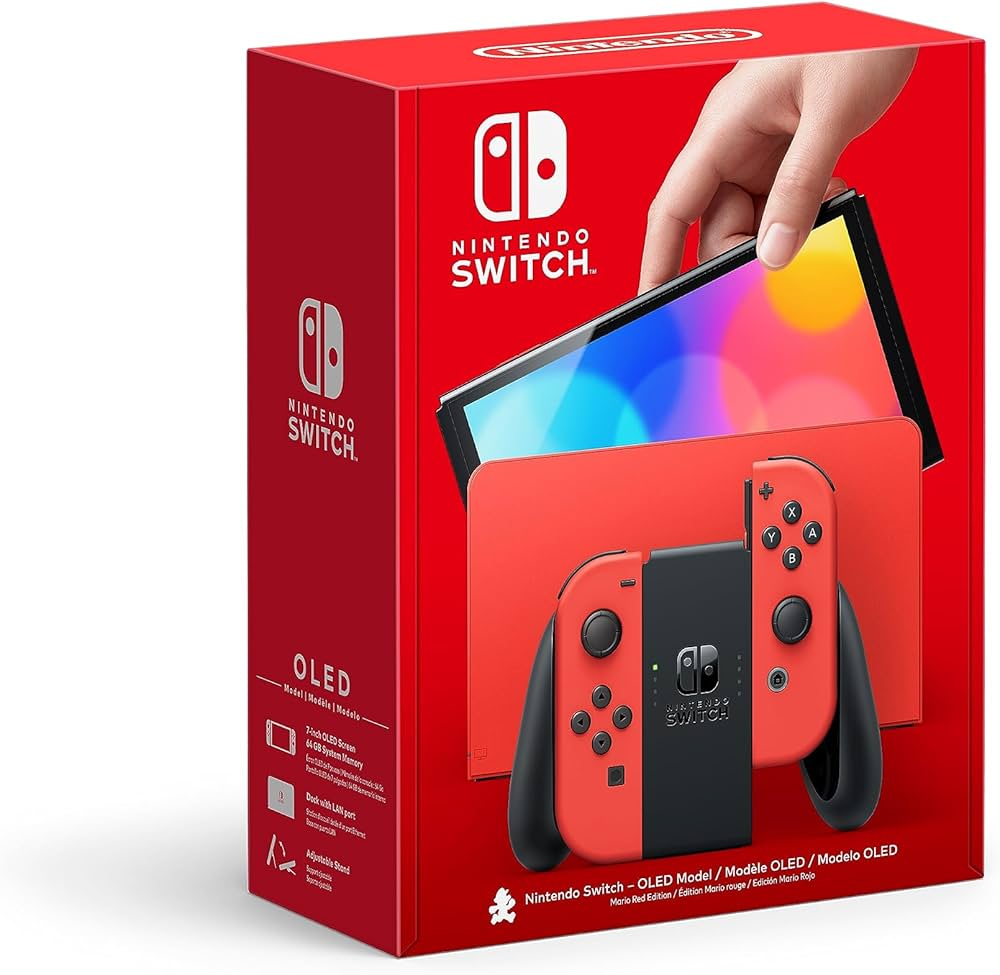

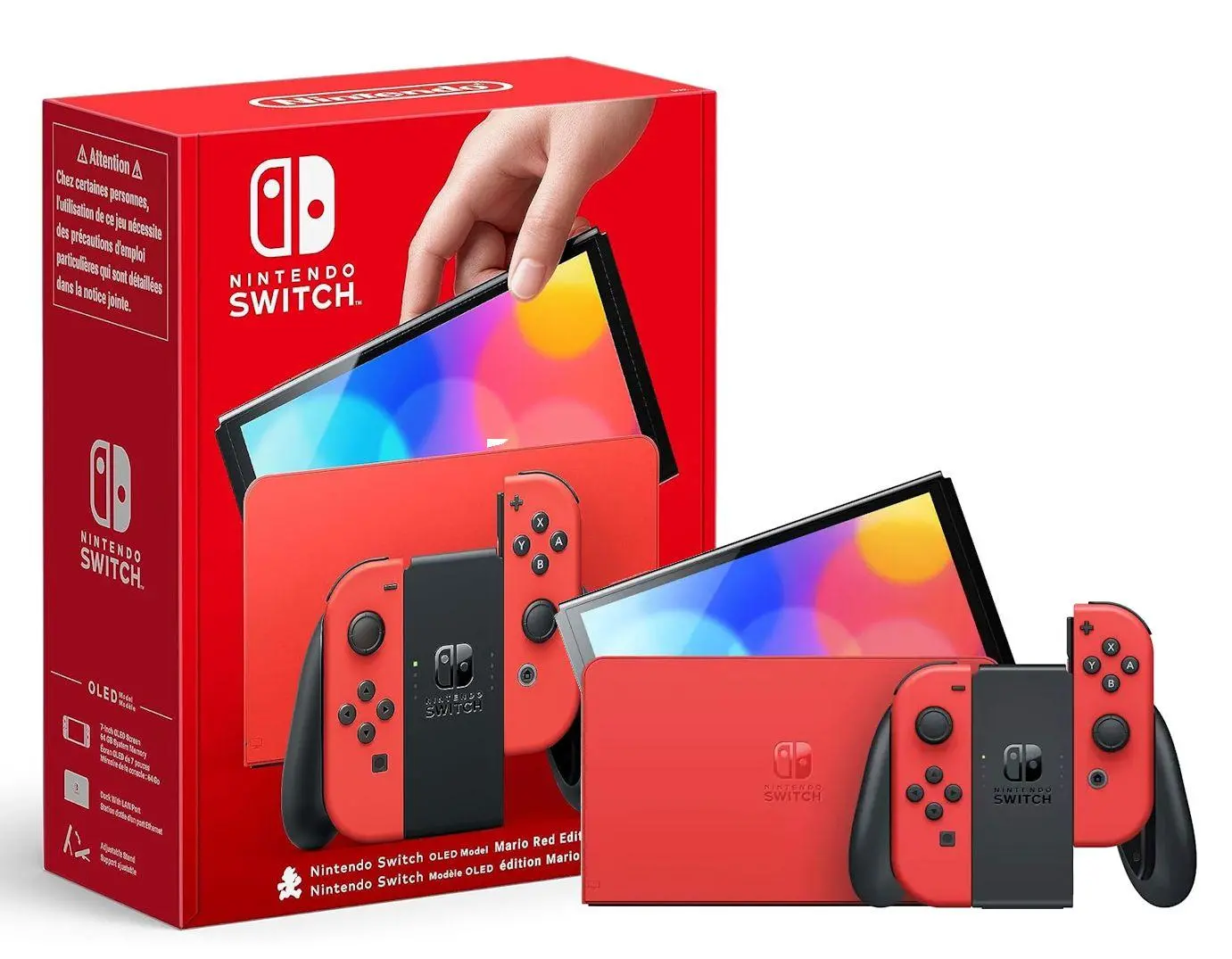

IN THE BOX (Mario Red Edition):

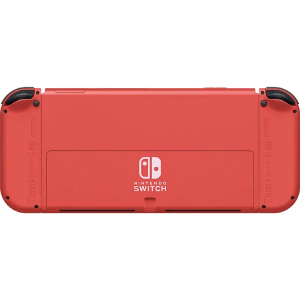

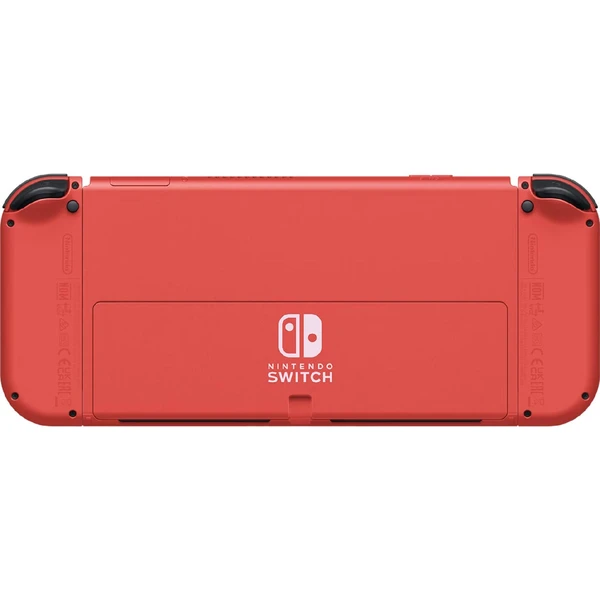

• Nintendo Switch Console – OLED Model (Mario Red)

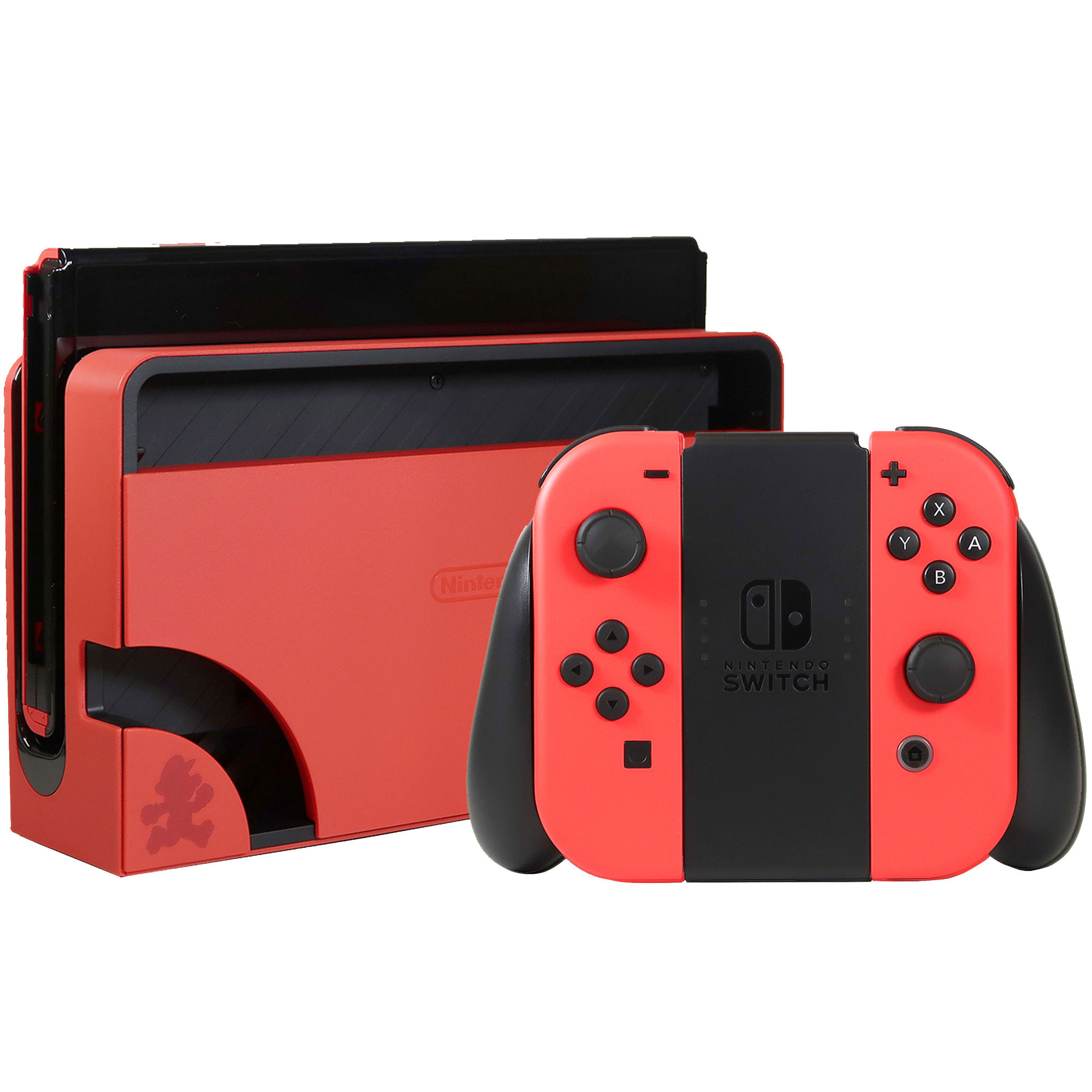

• Nintendo Switch Dock – OLED Model with Mario silhouette design

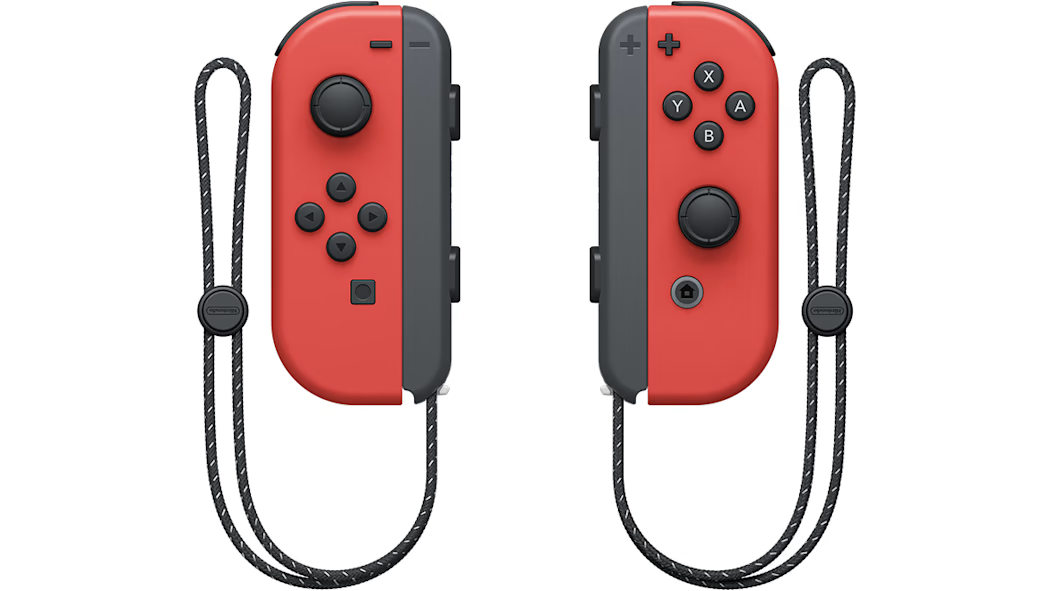

• Joy-Con (L) Mario Red
• Joy-Con (R) Mario Red
• Joy-Con Wrist Straps
• Joy-Con Grip
• High-Speed HDMI Cable
• Nintendo Switch AC Adapter

The Nintendo Switch – OLED Model: Mario Red Edition combines iconic Mario styling with versatile performance, offering a premium handheld and home gaming experience in one beautifully designed system. Perfect for fans, collectors, and players of all ages.
