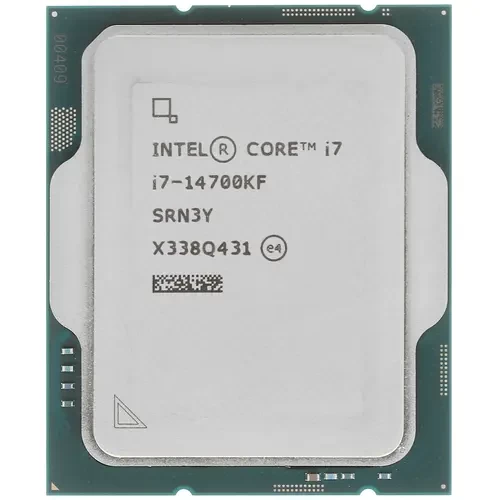

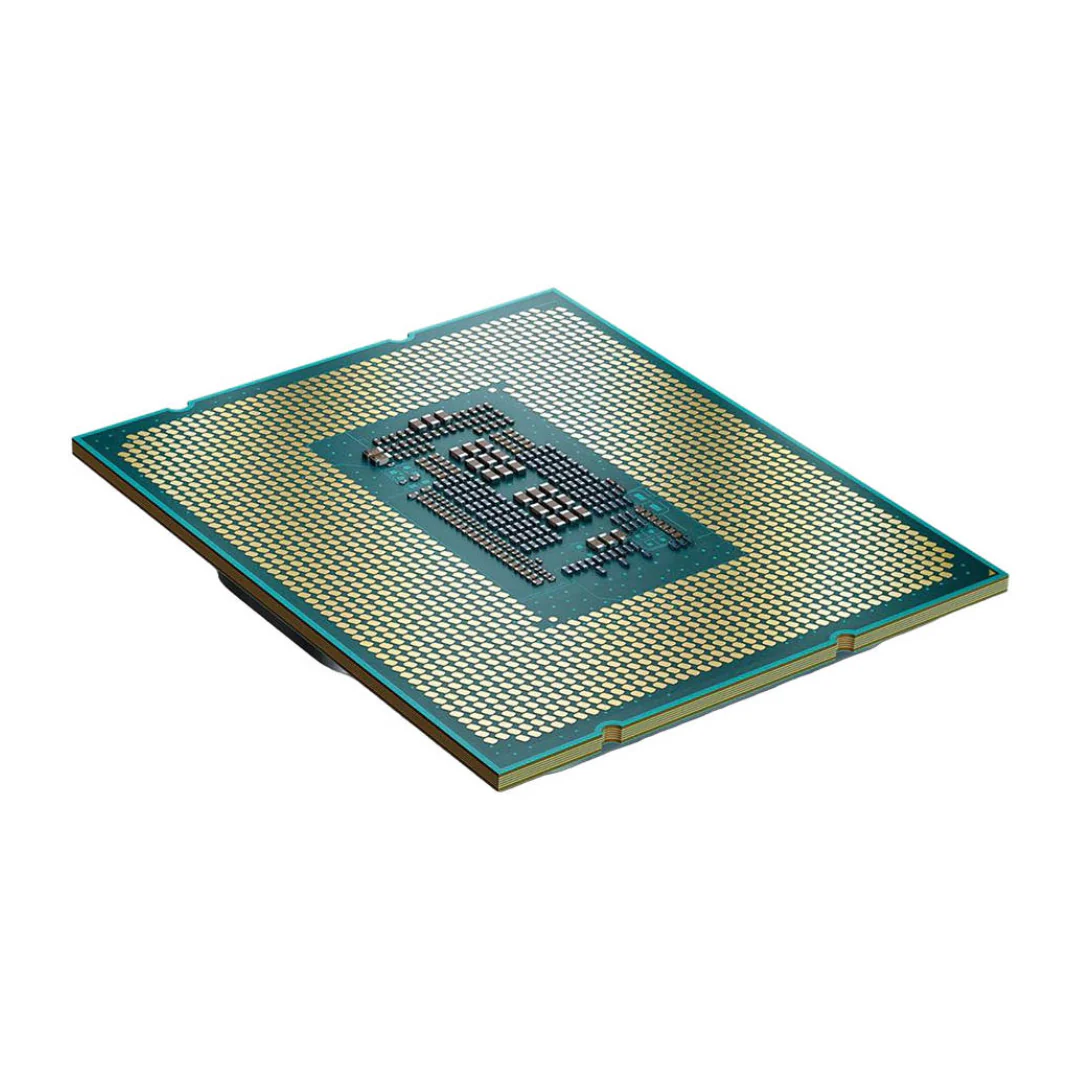

Intel Core i7-14700KF 20xCore, 3.4 GHz/5.6 GHz - BOX

Key Features:

20 Cores / 28 Threads – Includes 8 Performance-cores (P-cores) and 12 Efficient-cores (E-cores) for exceptional multitasking and responsiveness
Max Turbo Frequency up to 5.6 GHz – Blazing-fast single-threaded performance with Intel® Turbo Boost Max Technology 3.0
Unlocked Multiplier – Fully unlocked for custom overclocking and performance tuning
Intel Thread Director – Intelligent workload distribution across P-cores and E-cores for optimized performance
DDR5 & DDR4 Memory Support – Up to DDR5-5600 and DDR4-3200, with maximum capacity of 192 GB across 2 channels
PCIe 5.0 & 4.0 Ready – Up to 20 PCIe lanes for ultra-fast GPU and SSD connectivity
Large Cache – 33 MB Intel® Smart Cache and 28 MB L2 Cache for low latency and high throughput
High Bandwidth – Memory bandwidth up to 89.6 GB/s for demanding applications
Built for Gamers and Creators – Ideal for high-performance gaming, content creation, and heavy multitasking
Socket LGA1700 Compatibility – Compatible with Intel 600 and 700 series chipsets (Z790, B760, etc.)
No Integrated Graphics – Optimized for systems with dedicated GPU (F-series)

Technical Specifications:

Specification	Details
Total Cores	20 (8 Performance + 12 Efficient)
Threads	28
Max Turbo Frequency	5.6 GHz
P-core Max/Base Frequency	5.5 GHz / 3.4 GHz
E-core Max/Base Frequency	4.3 GHz / 2.5 GHz
Intel Smart Cache	33 MB
Total L2 Cache	28 MB
Processor Base Power / Max Turbo Power	125W / 253W
Max Memory Support	192 GB DDR5 / DDR4
Memory Types	DDR5-5600 / DDR4-3200
Max Memory Channels	2
Memory Bandwidth	89.6 GB/s
PCIe Version	PCIe 5.0 & 4.0
PCIe Lanes (Max)	20
Socket	LGA1700
Package Size	45.0 mm x 37.5 mm
Tjunction Max Temp	100°C
Unlocked for Overclocking	Yes
Integrated Graphics	None (KF variant)
Advanced Technologies	Intel® Thread Director, DL Boost, AVX2, Hyper-Threading, MBEC
Virtualization Support	Intel® VT-x, VT-d, EPT
Security Features	Intel® Boot Guard, AES-NI, OS Guard, Secure Key, Execute Disable
