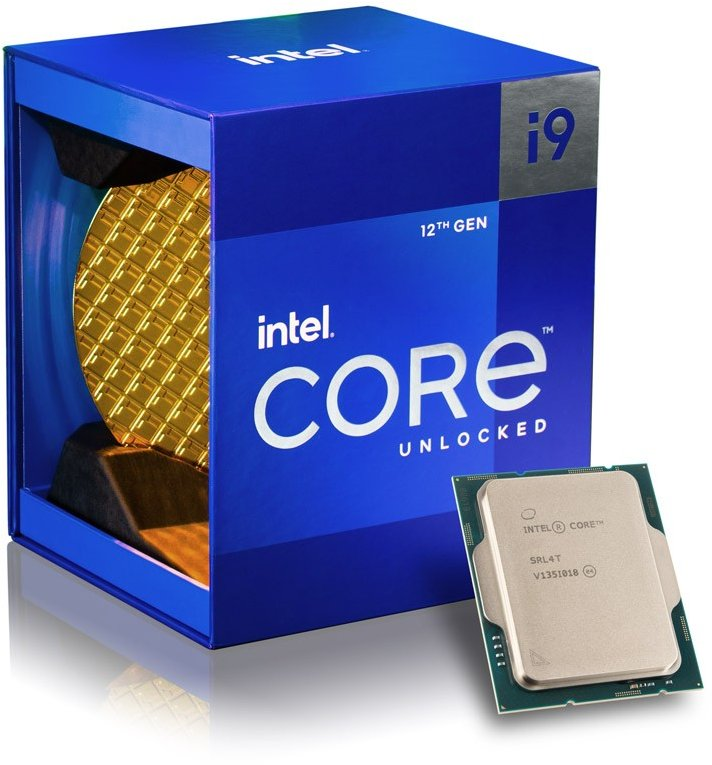

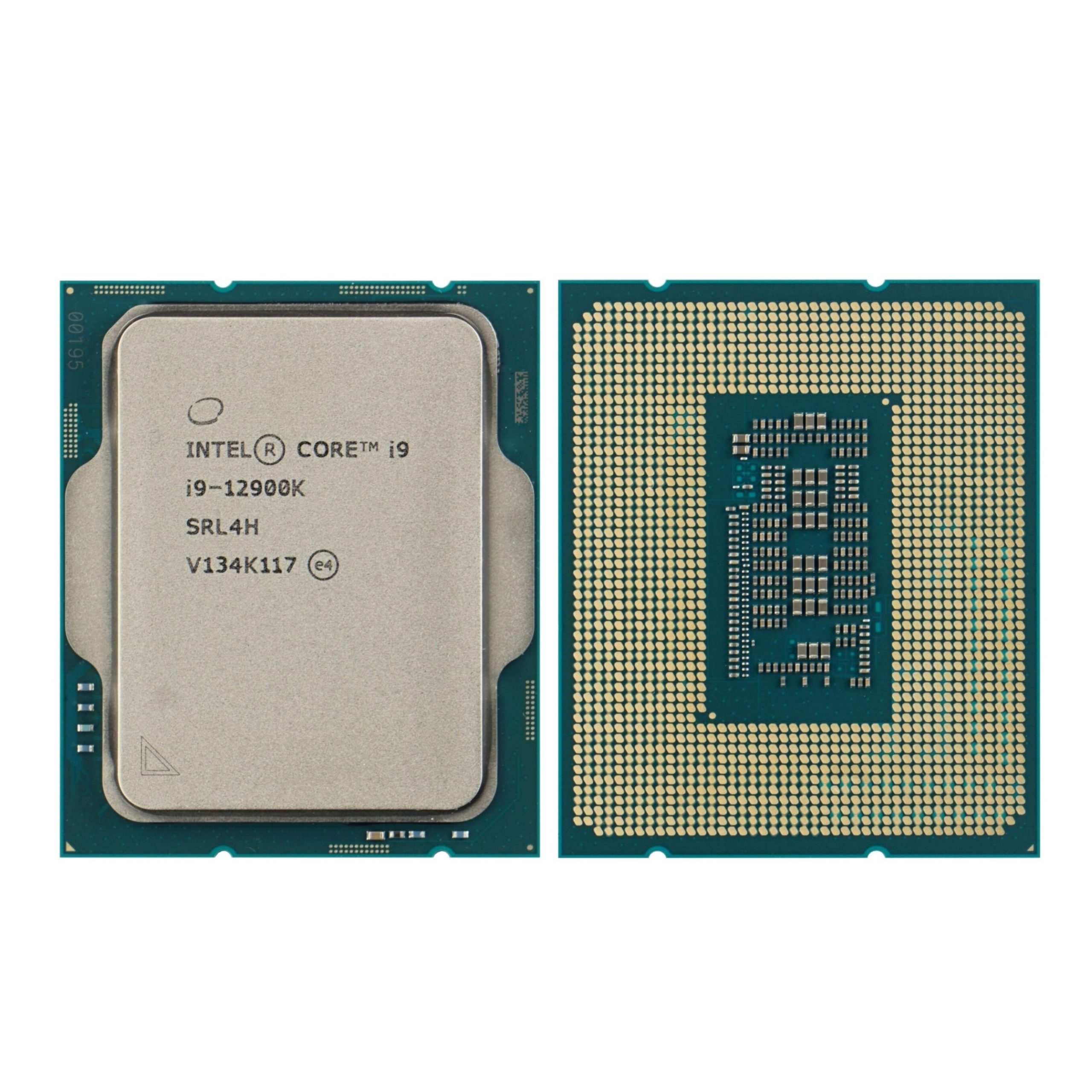

Intel Core i9-12900K 16xCore, 3.2 GHz/5.2 GHz – BOX

Intel® Core™ i9-12900K – Extreme Power for Elite Performance

• Total Cores: 16 (8 Performance-Cores + 8 Efficient-Cores)
• Total Threads: 24
• Max Turbo Frequency: 5.20 GHz
• Intel® Turbo Boost Max Technology 3.0 Frequency: 5.20 GHz
• Performance-Core Max Turbo Frequency: 5.10 GHz
• Efficient-Core Max Turbo Frequency: 3.90 GHz
• Performance-Core Base Frequency: 3.20 GHz
• Efficient-Core Base Frequency: 2.40 GHz
• Cache: 30 MB Intel® Smart Cache
• Total L2 Cache: 14 MB
• Processor Base Power: 125W
• Maximum Turbo Power: 241W
• Launch Date: Q4’21
• Marketing Status: Launched
• Use Conditions: PC/Client/Tablet, Workstation
• Socket Supported: FCLGA1700
• Max Operating Temperature: 100°C

Key Features & Benefits:
• Hybrid Architecture: 16 cores (8 Performance + 8 Efficient) and 24 threads for exceptional multitasking, gaming, and content creation.
• Intel® Thread Director: Dynamically assigns tasks for optimal power and performance efficiency.
• High Clock Speeds: Up to 5.2 GHz Max Turbo for extreme responsiveness under heavy loads.
• Robust Power Design: 125W Base and 241W Turbo Power for sustained top-tier performance.

Memory Support:
• Max Memory Size: 128 GB (dependent on memory type)
• Memory Types Supported: Up to DDR5 4800 MT/s, Up to DDR4 3200 MT/s
• Max Memory Channels: 2
• Max Memory Bandwidth: 76.8 GB/s
• ECC Memory Supported: Yes

Graphics:
• Integrated GPU: Intel® UHD Graphics 770
• Graphics Base Frequency: 300 MHz
• Max Dynamic Frequency: 1.55 GHz
• Graphics Outputs: eDP 1.4b, DP 1.4a, HDMI 2.1
• Execution Units: 32
• Max Resolutions:
– HDMI: 4096 x 2160 @ 60Hz
– DisplayPort: 7680 x 4320 @ 60Hz
– eDP: 5120 x 3200 @ 120Hz
• Supported APIs: DirectX 12, OpenGL 4.5, OpenCL 3.0
• Video Technologies: Intel® Quick Sync Video, Intel® Clear Video HD
• Displays Supported: Up to 4

Expansion Options:
• PCI Express Revision: 5.0 and 4.0
• PCIe Configurations: Up to 1×16+4, 2×8+4
• Max PCIe Lanes: 20
• DMI Revision: 4.0
• Max DMI Lanes: 8

Advanced Technologies:
• Intel® Thread Director
• Intel® Deep Learning Boost (DL Boost)
• Intel® Turbo Boost Max Technology 3.0
• Intel® Hyper-Threading Technology
• Intel® Speed Shift Technology
• Intel® Gaussian & Neural Accelerator 3.0
• Intel® Volume Management Device (VMD)
• Intel® Optane™ Memory Support
• Instruction Set Extensions: SSE4.1, SSE4.2, AVX2
• Thermal Monitoring & Enhanced SpeedStep®

Security & Reliability:
• Intel vPro® Enterprise & Hardware Shield
• Intel® Threat Detection Technology (TDT)
• Intel® Control-Flow Enforcement & Boot Guard
• Intel® AES-NI, OS Guard, Secure Key
• Intel® Trusted Execution Technology
• Virtualization Support: VT-x, VT-d, VT-rp, EPT
• Intel® Total Memory Encryption – Multi Key
• Mode-based Execute Control (MBEC)
• Intel® Stable IT Platform Program (SIPP)
