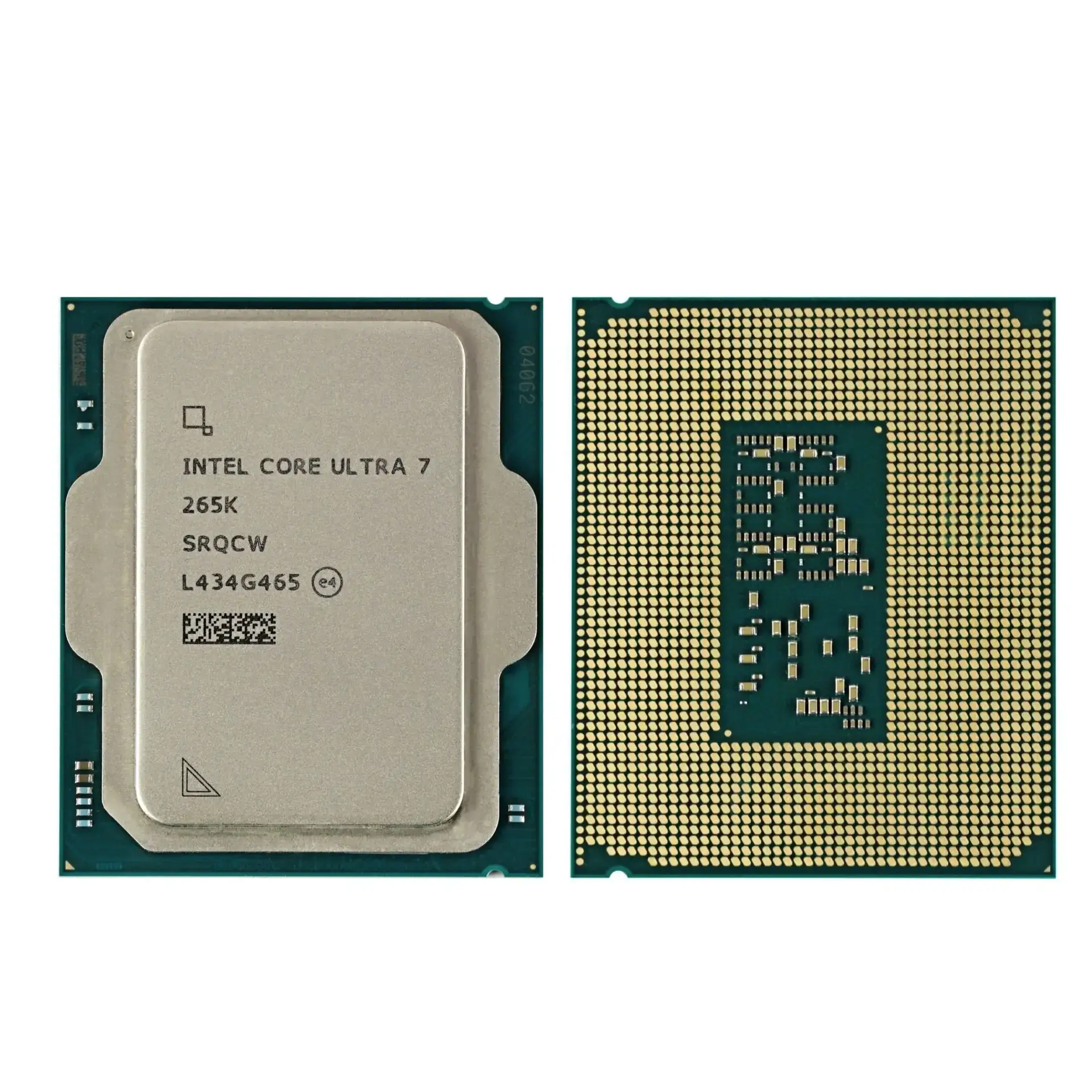

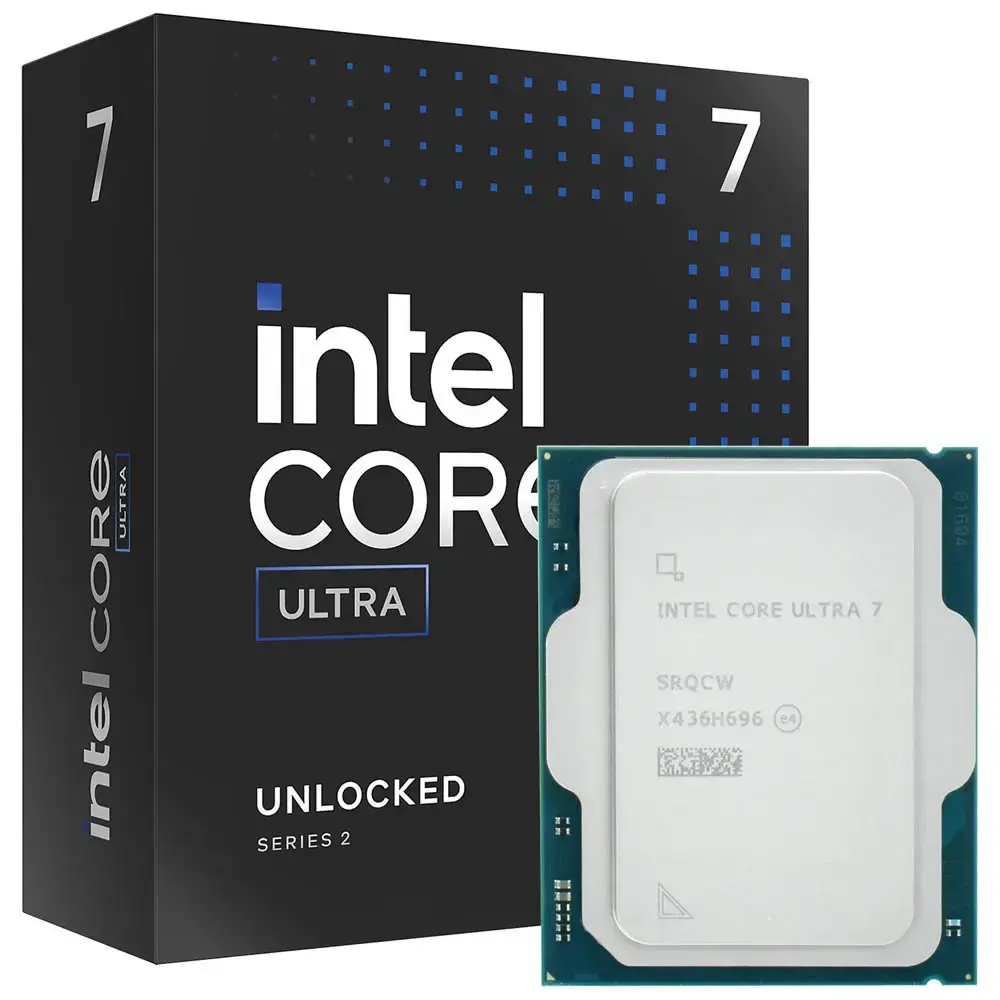

Intel Core Ultra 7 265K 20xCore, 3.3 GHz/5.5 GHz – BOX

Intel® Core™ Ultra 265K – Premium Desktop Processor with AI Acceleration & Extreme Performance

Total Cores: 20 (8 Performance-cores + 12 Efficient-cores)
Total Threads: 20
Max Turbo Frequency: Up to 5.5 GHz
P-core Max Turbo: 5.4 GHz | E-core Max Turbo: 4.6 GHz
P-core Base Frequency: 3.9 GHz | E-core Base Frequency: 3.3 GHz
Intel® Smart Cache: 30 MB
Total L2 Cache: 36 MB
Processor Base Power: 125 W
Maximum Turbo Power: 250 W
CPU Lithography: TSMC N3B
Socket: FCLGA1851
PCI Express Version: 5.0 & 4.0 | Max PCIe Lanes: 24
Scalability: 1S Only
Launch Date: Q4 2024
Target Market: High-end desktops and workstations

Memory Specifications:

• Maximum Memory Size: 256 GB

• Memory Types Supported: Up to DDR5-6400 MT/s

• Max Memory Channels: 2

• ECC Support: Yes

Integrated Graphics:

• GPU Name: Intel® Graphics

• Graphics Base Frequency: 300 MHz

• Graphics Max Dynamic Frequency: 2 GHz

• Xe-Cores: 4

• GPU Peak TOPS (Int8): 8

• Display Outputs:

  • HDMI 2.1: 8K @ 60Hz

  • DisplayPort 2.1: 8K @ 60Hz

  • eDP 1.4b: 4K @ 60Hz

• Supported APIs: DirectX 12, OpenGL 4.5, OpenCL 3

• Displays Supported: Up to 4

• Intel® Quick Sync Video: Yes

• Intel® Deep Learning Boost on GPU: Yes

AI Accelerator (NPU):

• Name: Intel® AI Boost

• Peak NPU Performance (Int8): 13 TOPS

• Sparsity Support: Yes

• AI Framework Compatibility: OpenVINO™, WindowsML, DirectML, ONNX RT, WebNN

• Windows Studio Effects Support: Yes

Expansion & Connectivity:

• Intel® Thunderbolt™ 4 Support: Yes

• DMI Revision: 4

• Max DMI Lanes: 8

• PCIe Configurations: 1×16 + 2×4, 2×8 + 2×4, 1×8 + 4×4

Security & Manageability:

• vPro® Enterprise & Intel® Hardware Shield Supported

• Intel® Threat Detection Technology (TDT)

• Intel® Active Management Technology (AMT)

• Intel® Trusted Execution Technology & Boot Guard

• Virtualization Support: VT-x, VT-d, VT-rp, EPT

• Memory and Execution Protection: Total Memory Encryption, Execute Disable Bit, Control-Flow Enforcement Technology

Advanced Technologies:

• Intel® Thread Director

• Intel® Speed Shift & Turbo Boost Max Technology 3.0

• Intel® Gaussian & Neural Accelerator 3.5

• Intel® OS Guard, AES-NI, Secure Key
