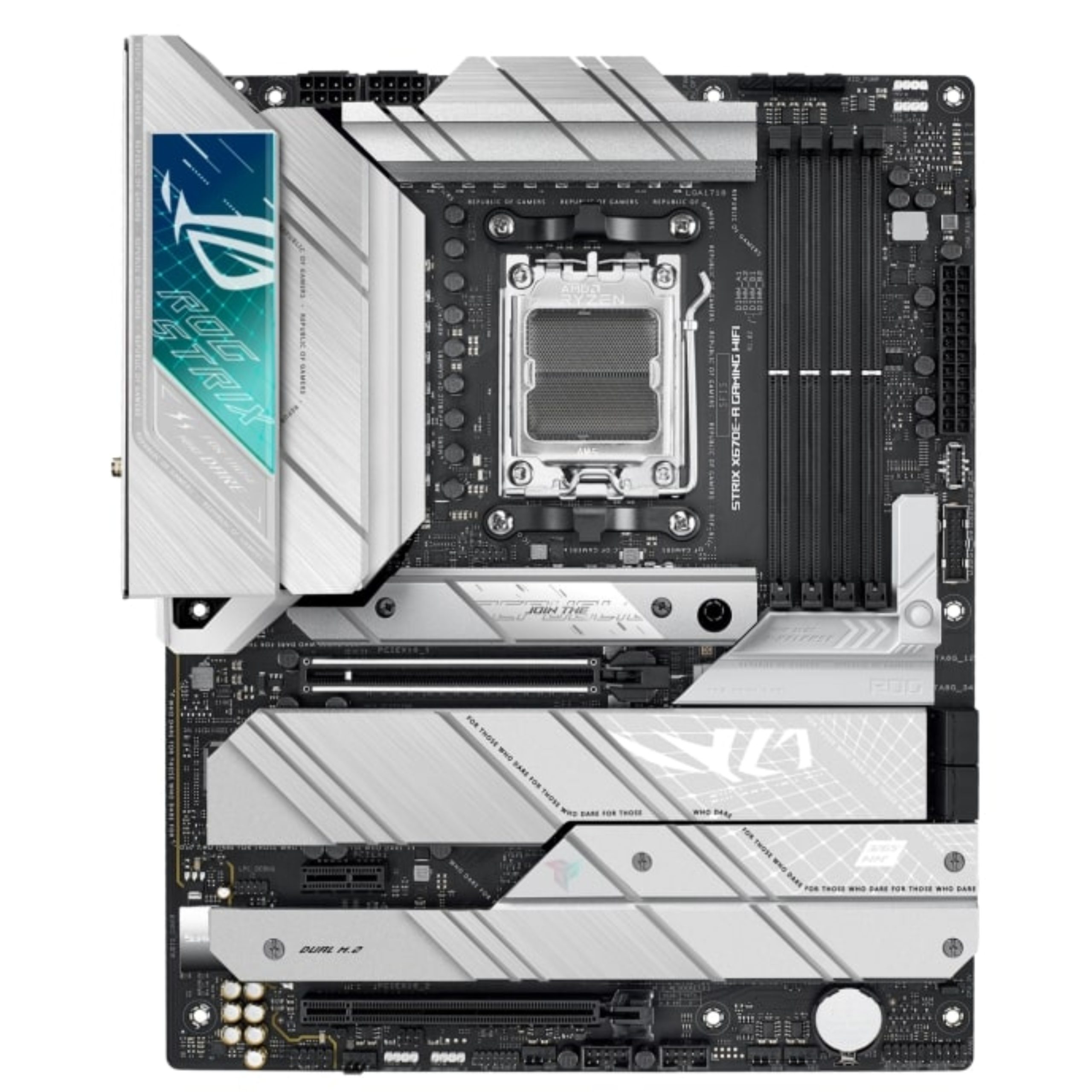

ASUS ROG STRIX X670E-A GAMING WIFI (AM5, DDR5, ATX)
Premium AM5 motherboard built for performance, overclocking, and next-gen connectivity
Key Features:
-
16+2+2 Power Stages (70A per stage) for exceptional CPU power delivery
-
Overclocking-Ready with dynamic clocking for Ryzen 7000/8000/9000
-
AI Cooling II: One-click thermal and acoustic optimization
-
PCIe 5.0: One x16 slot + Two Gen 5 M.2 slots
-
DDR5 Memory Support: Up to 8000+ MHz (OC), AMD EXPO ready
-
Wi-Fi 6E & 2.5Gb LAN for ultra-fast connectivity
-
DIY-Friendly Design: Q-Latch, Q-Release, BIOS FlashBack™, Clear CMOS
-
Premium Audio: SupremeFX ALC4080 with Savitech AMP
-
AURA Sync RGB & multiple Gen 2 addressable headers
-
Supports Windows 11 / 10 64-bit
Specifications Overview:
Category | Details |
---|---|
CPU Support | AMD Ryzen™ 9000, 8000, 7000 Series (AM5 socket) |
Chipset | AMD X670 |
Memory | 4x DDR5 DIMMs, up to 192GB, 8000+ MHz OC, Dual Channel, AMD EXPO |
Expansion Slots | 1x PCIe 5.0 x16, 1x PCIe 4.0 x16 (x4), 1x PCIe 3.0 x1 |
Graphics Output | 1x HDMI 2.1, 1x DisplayPort 1.4 |
Storage | 4x M.2 (2x Gen5, 2x Gen4), 4x SATA 6Gb/s, NVMe & SATA RAID support |
Networking | Intel® 2.5Gb LAN, Wi-Fi 6E (2×2), Bluetooth 5.2 |
Rear I/O Ports | 12x USB (incl. 2x Type-C), HDMI, DP, 2.5Gb LAN, Audio jacks, S/PDIF, BIOS FlashBack™, Clear CMOS |
Audio | SupremeFX 7.1, ALC4080, Savitech AMP, 32-Bit/384kHz support |
USB (Front) | 1x USB 3.2 Gen 2×2 (Type-C), USB 3.2 Gen 1 & USB 2.0 headers |
Internal Headers | 4x M.2, 4x SATA, AIO & Fan headers, RGB/A-RGB, Thunderbolt, TPM, Front Audio |
Form Factor | ATX (30.5 cm x 24.4 cm) |
Software | Armoury Crate, AI Suite 3, Sonic Studio, DTS Sound, GameFirst VI, AIDA64 (trial) |
Accessories | Wi-Fi antenna, M.2 Q-Latches, SATA cables, thermal pad, ROG keychain, stickers |
