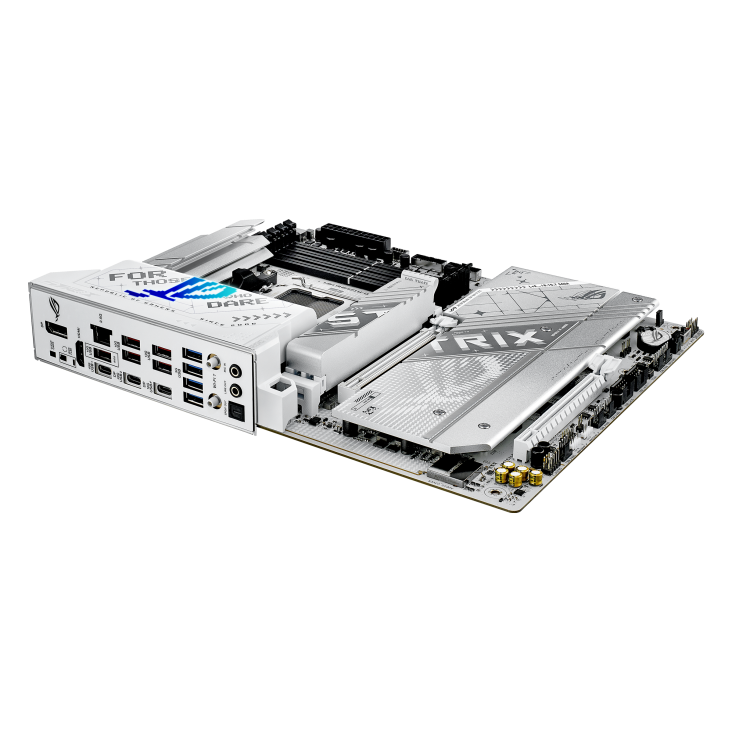

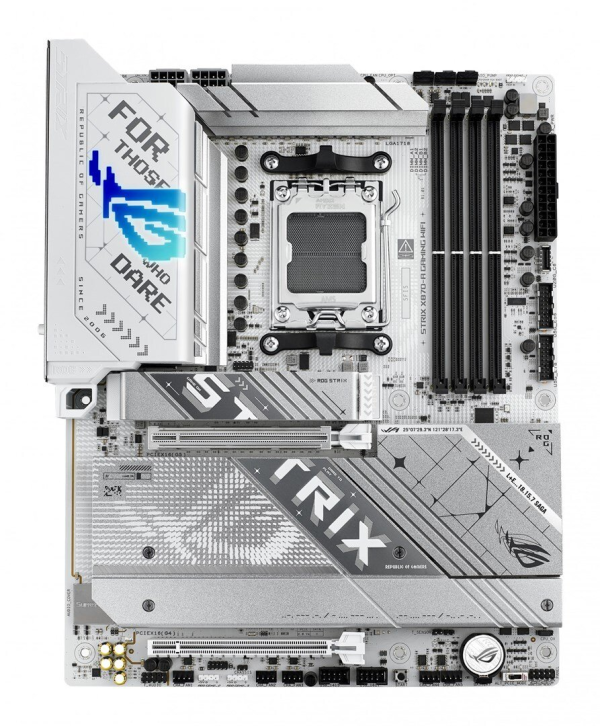

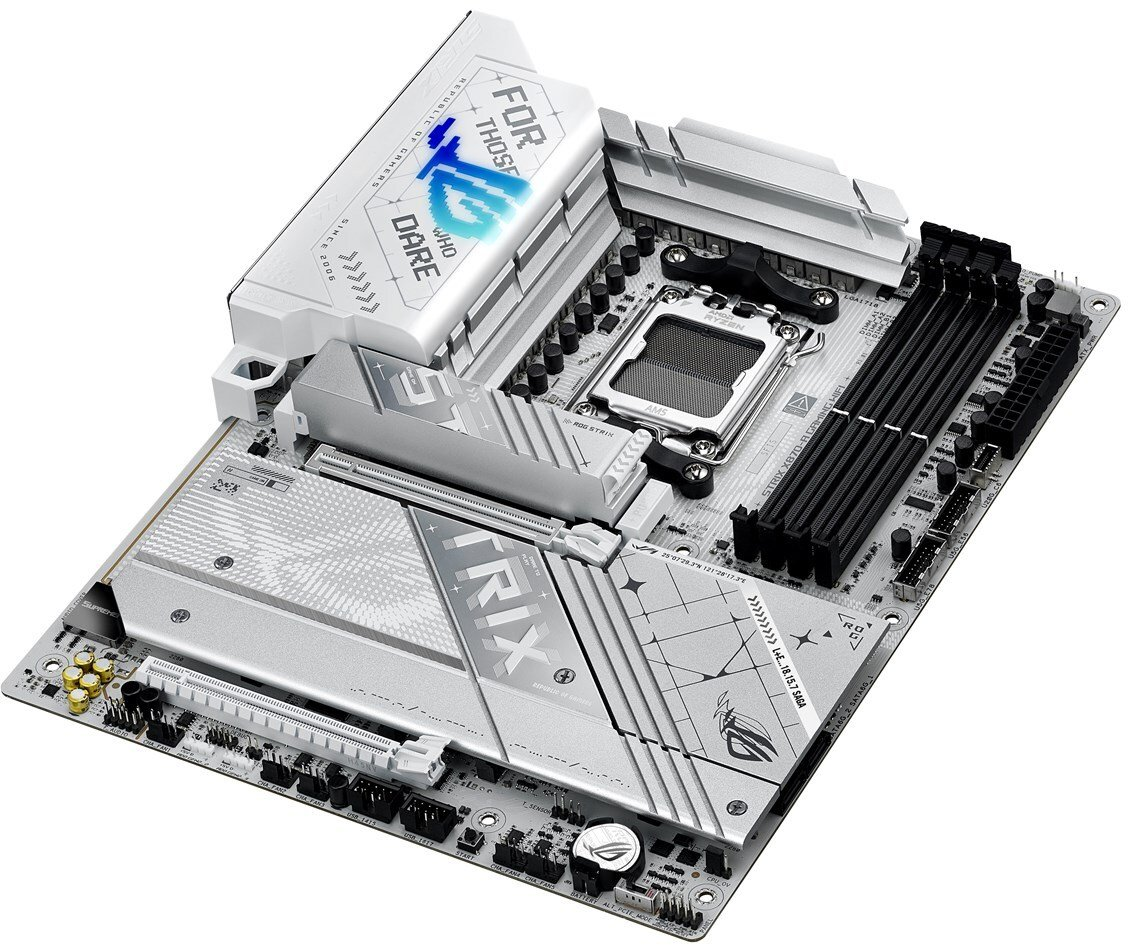

ASUS ROG STRIX X870-A GAMING WIFI AM5 DDR5 ATX

ASUS ROG STRIX X870-A GAMING WIFI AM5 DDR5 ATX

Key Features:

• CPU Support: AMD Socket AM5, compatible with Ryzen™ 9000, 8000 & 7000 Series

• Chipset: AMD X870

• Memory: 4x DIMM DDR5, up to 256GB, 8000+ MT/s (OC), Dual Channel, ECC/Non-ECC, EXPO & AEMP support

• Graphics Output: 1x DisplayPort (8K@30Hz), 1x HDMI 2.1 (4K@60Hz), 2x USB4® Type-C with DP Alt Mode

• Expansion Slots:

  • Ryzen™ 9000/7000: 1x PCIe 5.0 x16 (x16 mode)

  • Ryzen™ 8000: 1x PCIe 4.0 x16 (x8/x4 mode)

  • Chipset: 1x PCIe 4.0 x16 (x4 mode)

• Storage:

  • 4x M.2 Slots: PCIe 5.0/4.0 support, RAID 0/1/5/10

  • 2x SATA 6Gb/s ports

• Networking: Intel® 2.5Gb Ethernet, Wi-Fi 7 (2×2, 2.9Gbps), Bluetooth® 5.4

• USB Rear:

  • 2x USB4® (40Gbps, Type-C)

  • 6x USB 10Gbps (5x Type-A, 1x Type-C w/30W PD)

  • 4x USB 5Gbps (Type-A)

• USB Front:

  • 1x USB 20Gbps (Type-C)

  • 4x USB 5Gbps via headers

  • 4x USB 2.0 via headers

Audio:

• ROG SupremeFX 7.1 Surround (ALC4080), 32-bit/384kHz playback, 120dB SNR

• Optical S/PDIF, premium capacitors, Savitech SV3H712 AMP

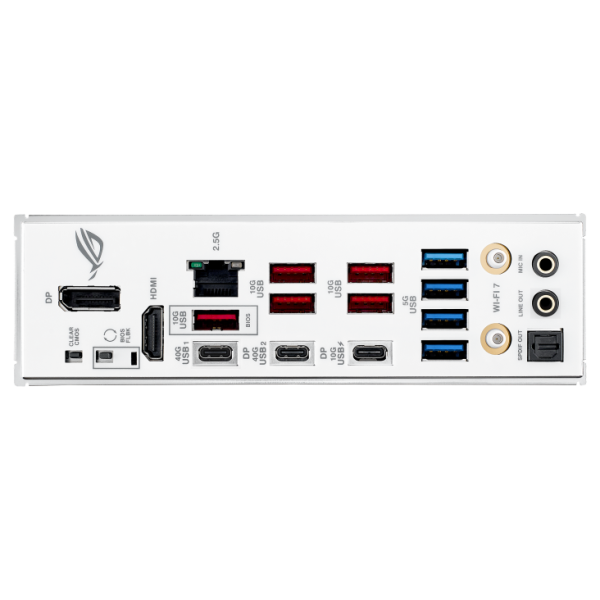

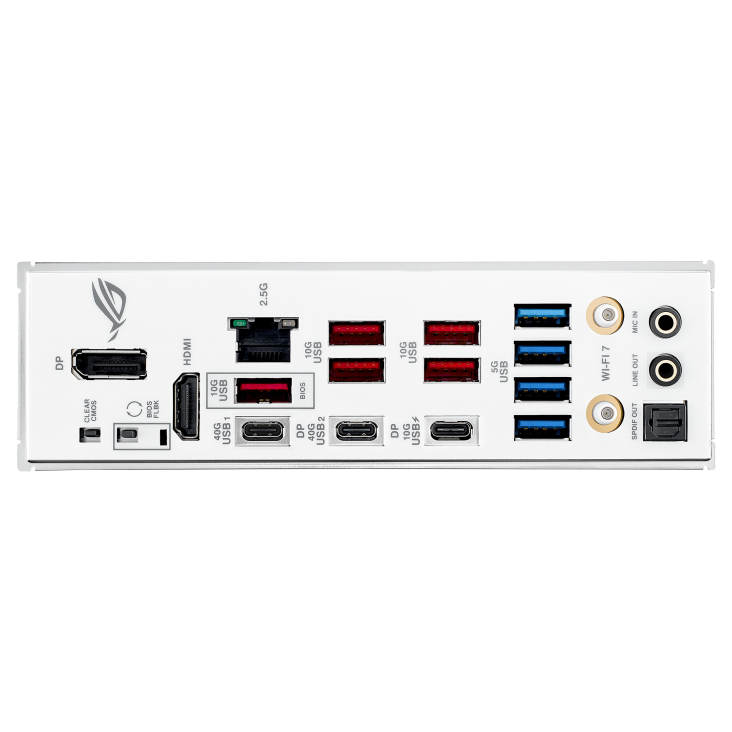

Back Panel I/O:

• 2x USB4® Type-C

• 6x USB 10Gbps

• 4x USB 5Gbps

• 1x DP, 1x HDMI, 1x Optical S/PDIF

• Intel® 2.5Gb LAN, Wi-Fi Module

• BIOS FlashBack™, Clear CMOS, 2x Audio Jacks

Internal I/O:

• 1x CPU Fan, 1x CPU OPT, 1x AIO Pump, 5x Chassis Fans

• 1x 24-pin ATX, 2x 8-pin CPU power

• 4x M.2, 2x SATA

• 1x USB 20Gbps (Type-C), 2x USB 5Gbps, 2x USB 2.0 headers

• Multiple Q-Features: Q-Latch, Q-Release, Q-DIMM, Q-LED, Q-Antenna

• Debug Features: Start button, Thermal Sensor, CPU Overvoltage jumper

ASUS Exclusive Features:

• Extreme Engine Digi+, ProCool II, SafeDIMM, SafeSlot

• M.2 Heatsinks & Backplate

• Aura Sync RGB with Gen 2 ARGB headers

• AI Cooling II, BIOS FlashBack™, EZ Flash 3, CrashFree BIOS 3, MyHotkey

Bundled Software:

• Armoury Crate, Fan Xpert 4, ROG CPU-Z, GameFirst, AIDA64 (60-day), Dolby Atmos, HWiNFO

• Adobe Creative Cloud (Trial), Norton 360 for Gamers (60-day), WinRAR (40-day)

BIOS:

• 256Mb UEFI AMI BIOS with Dynamic OC Switcher, FlexKey, EZ Mode

Accessories:

• 2x SATA Cables, WiFi Q-Antenna, M.2 Q-Latch & Q-Slide, ROG Keychain, ROG Stickers, Rubber pads, Cable ties, Quick Start Guide

Form Factor: ATX (30.5 cm x 24.4 cm)
Operating System: Windows 11
