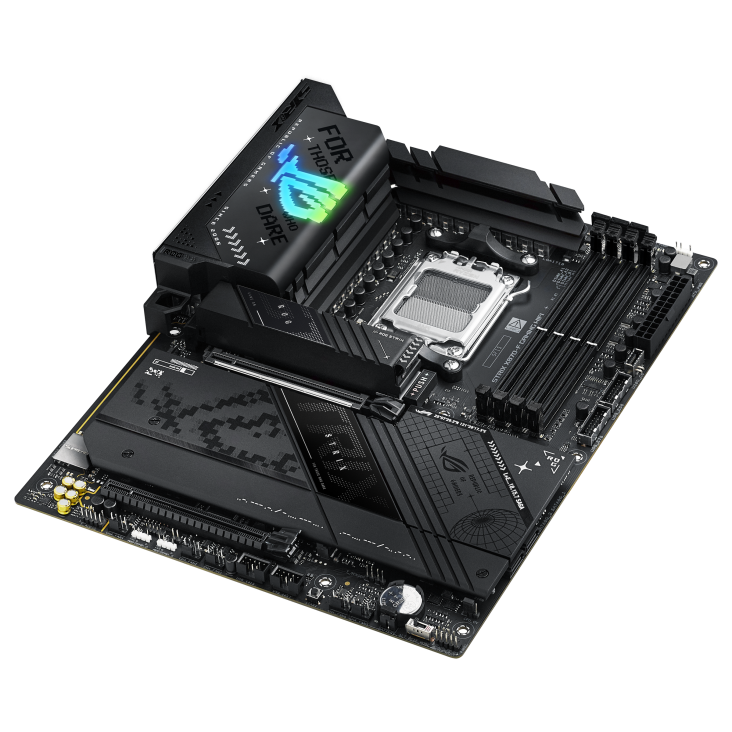

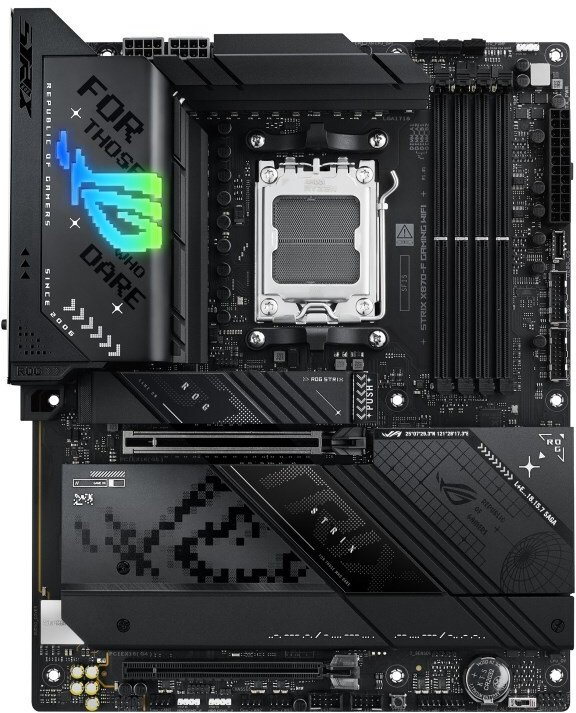

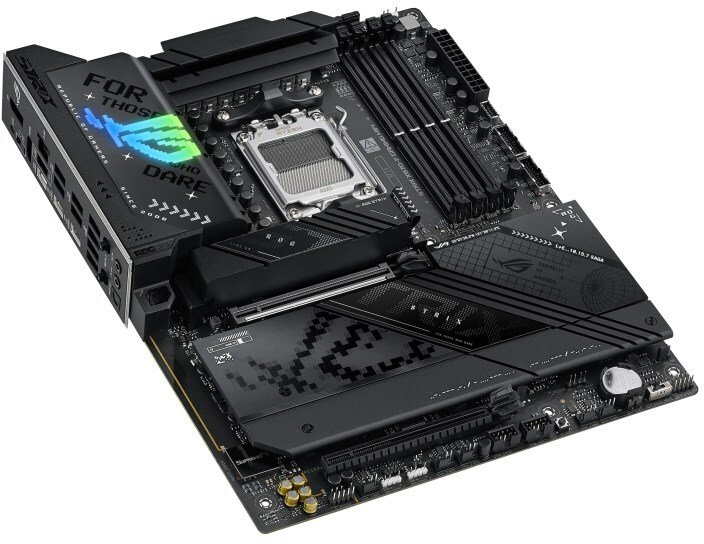

ASUS ROG STRIX X870-F GAMING WIFI AM5 DDR5 ATX

ASUS ROG STRIX X870-F GAMING WIFI – AM5 DDR5 ATX Motherboard

Key Features:

• Socket & CPU Support: AMD AM5 socket for Ryzen™ 9000, 8000, and 7000 Series Desktop Processors

• Chipset: AMD X870 high-performance chipset

• Memory Support: 4× DDR5 DIMM slots, up to 256GB, up to 8000+ MT/s (OC), ECC/Non-ECC, Dual Channel, EXPO™ & AEMP support

• Graphics Output: 1× DisplayPort 1.4 (up to 8K@30Hz), 1× HDMI 2.1 (4K@60Hz), 2× USB4® Type-C® (with DP Alt mode)

Expansion Slots:

• 1× PCIe 5.0 x16 (for Ryzen 9000/7000)

• 1× PCIe 4.0 x16 (x8/x4 mode for Ryzen 8000)

• 1× PCIe 4.0 x16 (x4 via chipset)

Storage Options:

• M.2 Slots:

  • M.2_1: PCIe 5.0 x4 (2242–2280, Ryzen 9000/7000)

  • M.2_2: PCIe 5.0 x4 (2242–22110, Ryzen 9000/7000)*

  • M.2_3 / M.2_4: PCIe 4.0 x4 (2280) via chipset

• SATA Ports: 2× SATA 6Gb/s

• RAID Support: PCIe & SATA RAID 0/1/10 (RAID 5 only with Ryzen 9000)

*Note: M.2_2 not supported with Ryzen 8000 Series. Bandwidth sharing applies with PCIe slots.

Networking:

• LAN: Intel® 2.5Gb Ethernet with ASUS LANGuard

• Wireless: Wi-Fi 7 (802.11be, 2×2, 2.4/5/6GHz), Bluetooth® 5.4

USB Connectivity:

• Rear I/O (12 Ports):

  • 2× USB4® Type-C® (40Gbps, DP Alt mode)

  • 6× USB 10Gbps (5× Type-A + 1× Type-C with up to 30W PD)

  • 4× USB 5Gbps (Type-A)

• Front I/O (9 Ports):

  • 1× USB 20Gbps Type-C®

  • Headers for 4× USB 5Gbps + 4× USB 2.0

Audio:

• ROG SupremeFX 7.1 HD Audio (ALC4080)

• High-end features: 120dB SNR playback, 32-bit/384kHz, Savitech AMP, S/PDIF out, premium capacitors

• Note: Rear LINE OUT does not support spatial audio

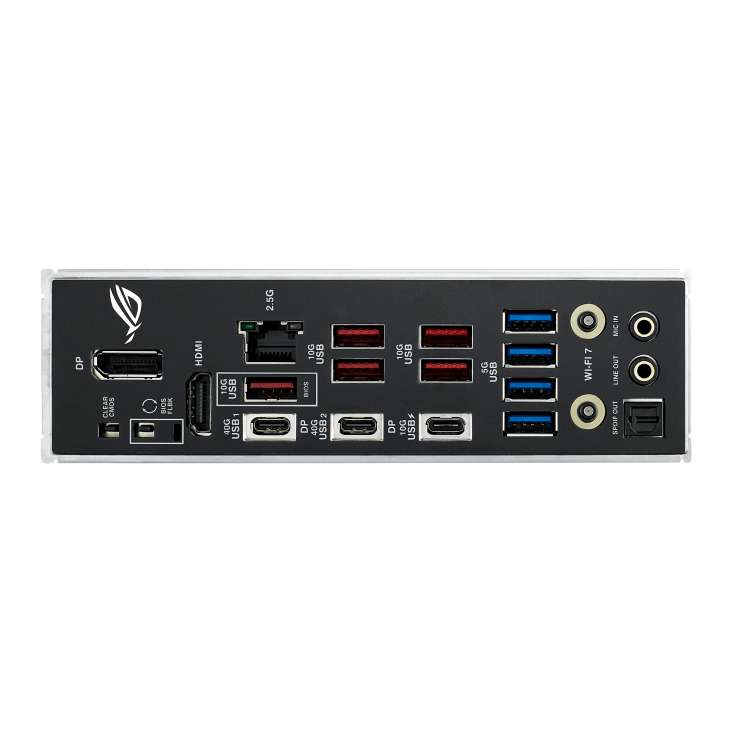

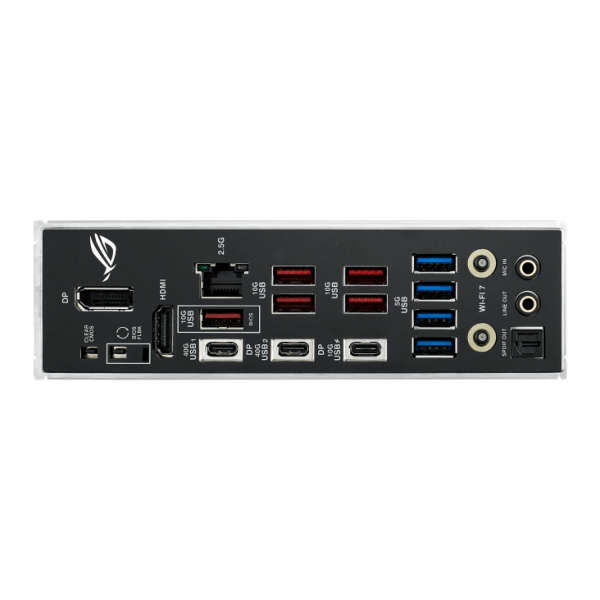

Back Panel I/O:

• 2× USB4® Type-C®, 6× USB 10Gbps, 4× USB 5Gbps

• 1× DisplayPort, 1× HDMI, 2× Audio jacks + S/PDIF

• 1× 2.5Gb LAN, 1× Wi-Fi module

• 1× BIOS FlashBack™, 1× Clear CMOS

Internal Connectors:

• Cooling: 1× CPU Fan, 1× CPU OPT, 1× AIO Pump, 5× Chassis Fan

• Power: 1× 24-pin ATX, 2× 8-pin CPU

• Headers:

  • 3× ARGB Gen 2, PCIe mode switch, Chassis intrusion, CPU OV jumper

  • Front panel audio, Thermal sensor, Start button, System panel

Special Features:

• DIY Friendly: Q-Design (Q-DIMM, Q-Slot, Q-Latch, Q-Release, Q-Antenna)

• Cooling Design: Heatsink backplate & full M.2 cooling

• Convenience: Pre-mounted I/O, BIOS FlashBack™, SafeDIMM, SafeSlot

• Aura Sync RGB: 3× ARGB Gen 2 headers

Software & BIOS:

• ROG Tools: CPU-Z, Dolby Atmos, GameFirst

• Armoury Crate: AIDA64 (60-day), Aura Creator, Fan Xpert 4, HWiNFO, TurboV Core

• UEFI BIOS: EZ Flash 3, CrashFree BIOS 3, Dynamic OC Switcher, MyHotkey

• Free Trials: Adobe CC, Norton 360 (60 days), WinRAR (40 days)

• BIOS: 256Mb Flash ROM, UEFI AMI

Accessories Included:

• 2× SATA cables, M.2 Q-Latch & Q-Slide, thermal pad, cable ties

• ROG keychain, stickers, Wi-Fi Q-Antenna

• Quick Start Guide

Form Factor:

• ATX (30.5 cm x 24.4 cm)

• OS Support: Windows 11
