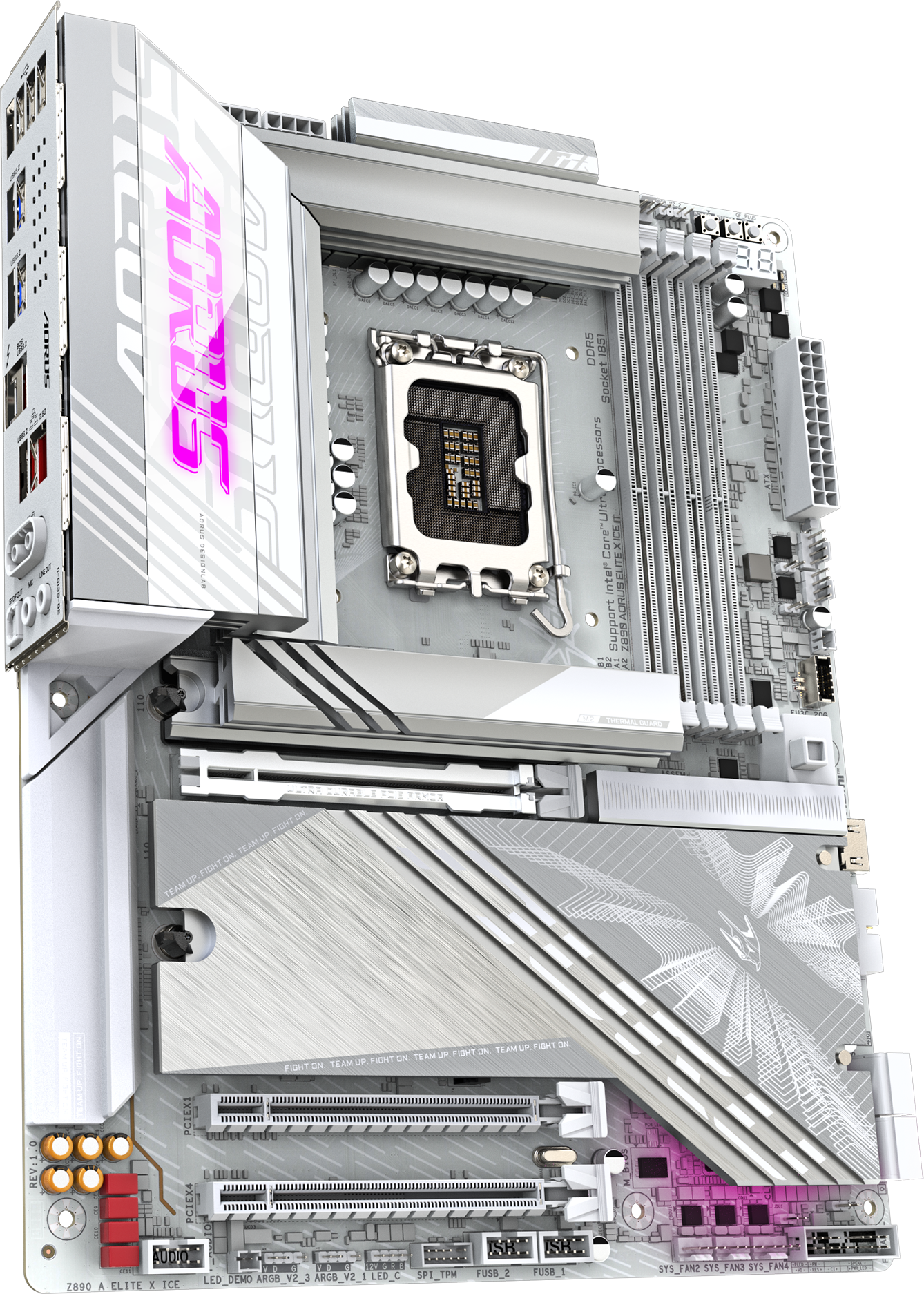

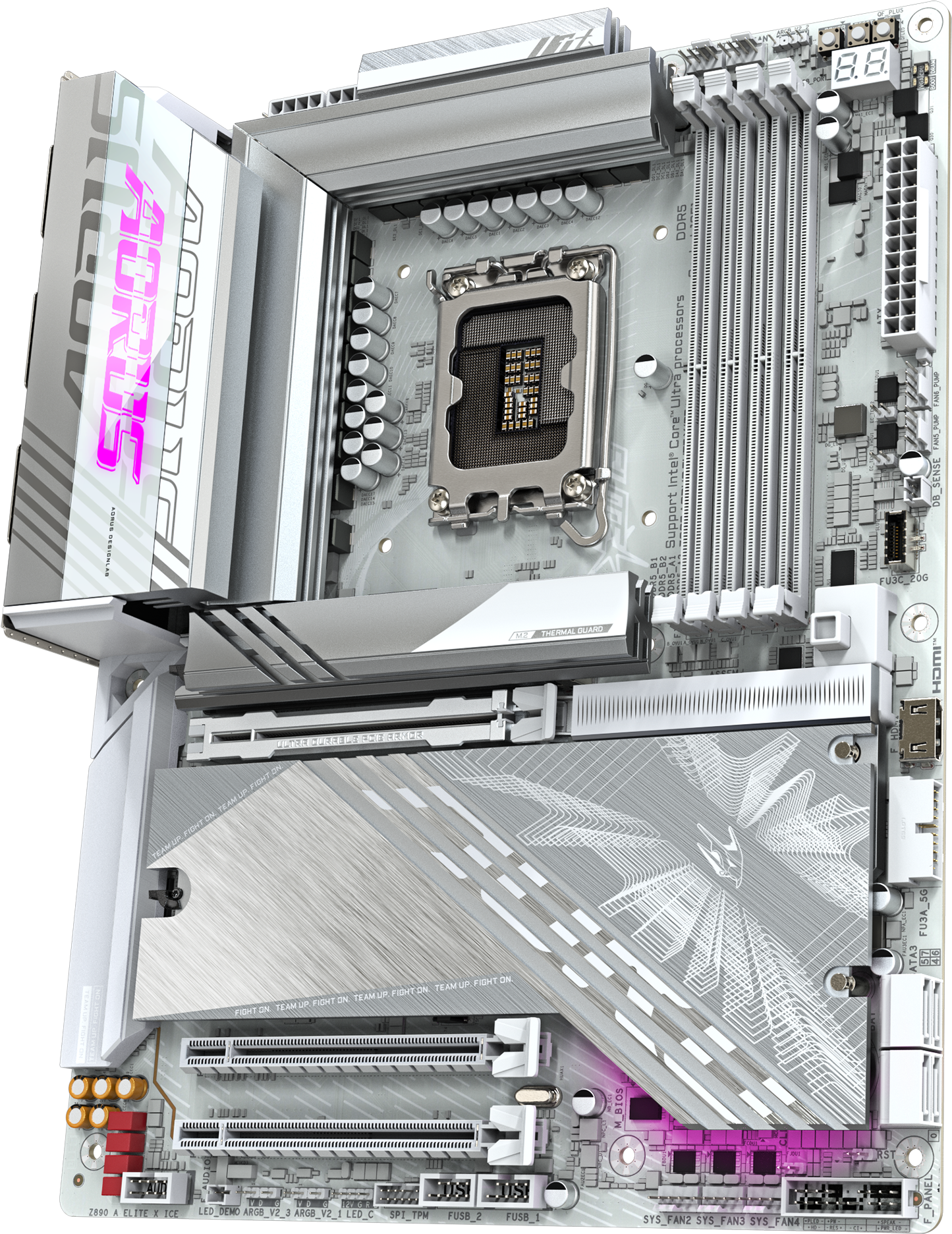

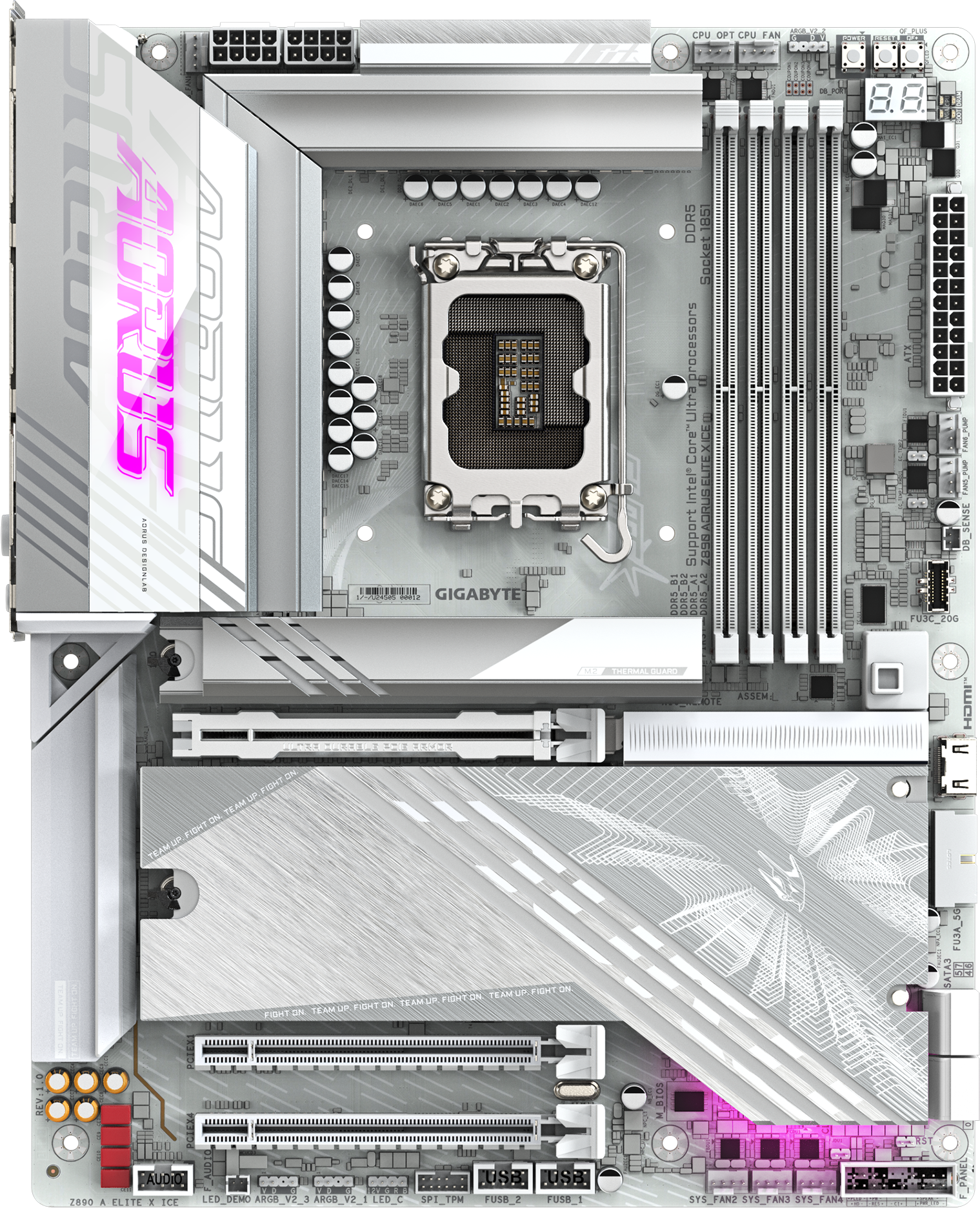

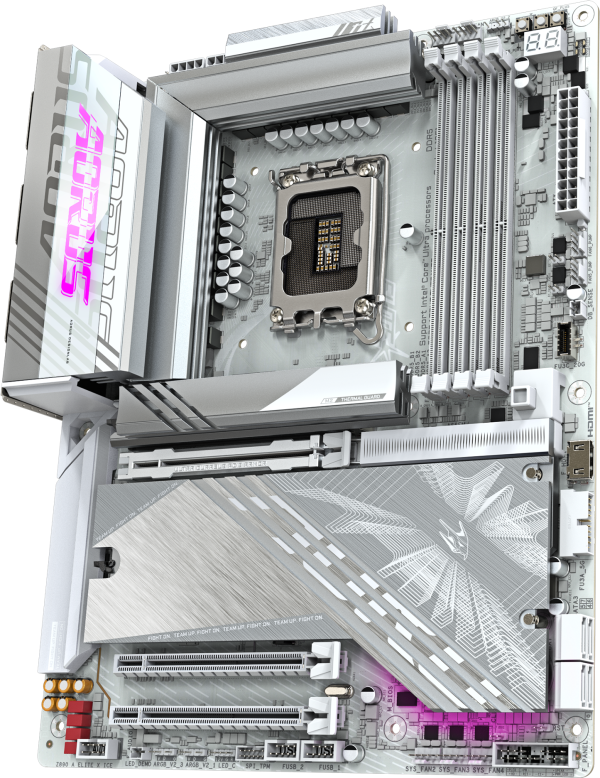

GIGABYTE Z890 AORUS Elite X ICE LGA1851 DDR5 ATX

GIGABYTE Z890 AORUS Elite X ICE LGA1851 DDR5 ATX Motherboard

CPU

• LGA1851 socket, supports Intel® Core™ Ultra Processor

• L3 cache varies by CPU (see CPU Support List)

Chipset

• Intel® Z890 Express Chipset

Memory

• 4 x DDR5 DIMM slots, up to 256 GB total (64 GB per DIMM)

• Supports DDR5 speeds from 5600 MT/s up to 9500 MT/s (OC)

• Dual channel memory architecture

• Supports ECC and non-ECC unbuffered DIMMs

• Supports Extreme Memory Profile (XMP)

• Supports CUDIMM memory modules

Onboard Graphics

• Intel® HD Graphics support via CPU integrated graphics

• 1 x Intel® Thunderbolt™ 4 (USB4® Type-C) port, supports DisplayPort and Thunderbolt video

• Max resolution Thunderbolt monitor: 5120×2880@60Hz

• Max resolution USB4 Type-C monitor: 3840×2160@240Hz

• 1 x front HDMI 1.4 port, max resolution 1920×1080@30Hz

Audio

• Realtek® ALC1220 CODEC

• Supports 2/4/5.1/7.1 channel audio output

• Back panel line out supports DSD audio

• S/PDIF Out support

Networking

• Realtek® 2.5GbE LAN

• Dual MediaTek Wi-Fi 7 modules (MT7925 & RTL8922AE) with Bluetooth 5.4

• Supports 2.4/5/6 GHz bands and 11be 160MHz wireless standard

• Wi-Fi 7 requires Windows 11 SV3

Expansion Slots

• 1 x PCIe 5.0 x16 slot (CPU) for graphics card or NVMe SSD

• 1 x PCIe 4.0 x16 slot (x4 mode) (Chipset)

• 1 x PCIe 4.0 x1 slot (Chipset)

Storage

• 5 x M.2 slots (PCIe 5.0 / PCIe 4.0 / SATA support)

• 4 x SATA 6Gb/s ports

• RAID 0/1/5/10 support for NVMe and SATA devices

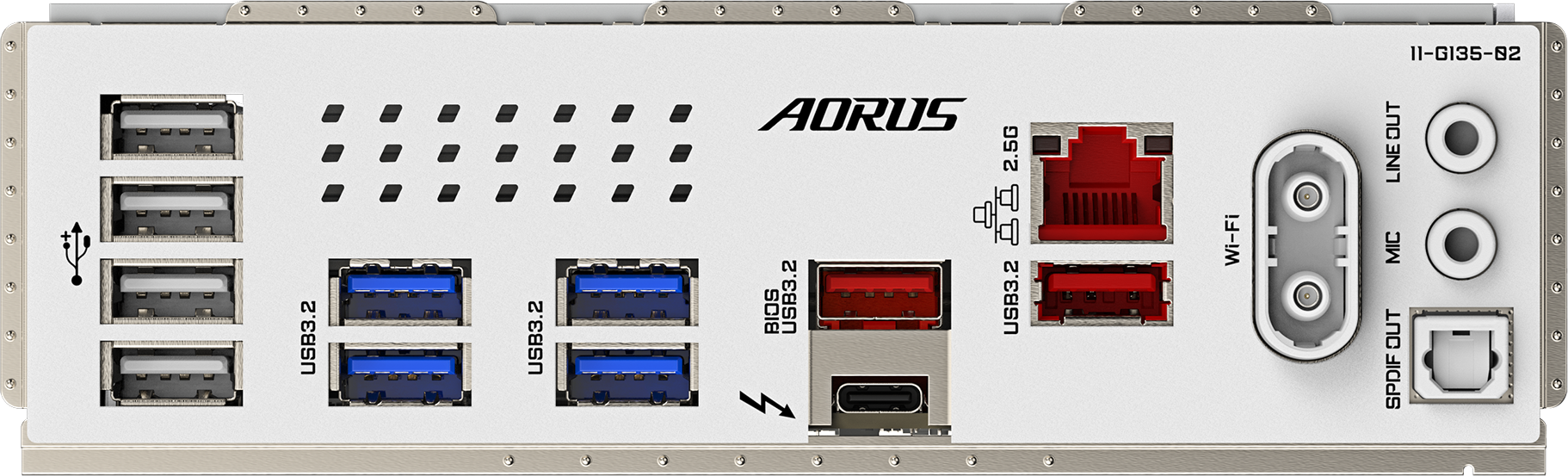

USB Ports

• Rear: 1 x Thunderbolt™ 4 USB-C (up to 40Gbps), 2 x USB 3.2 Gen2 Type-A, 4 x USB 3.2 Gen1, 4 x USB 2.0

• Internal: USB 3.2 Gen2x2 Type-C header, USB 3.2 Gen1 header, USB 2.0 headers

Cooling & Control

• Multiple fan headers including CPU, system, water pump

• 3 x Addressable RGB Gen2 headers, 1 x RGB header

• Noise detection and fan speed control with warning features

BIOS

• Licensed AMI UEFI BIOS, 256 Mbit flash

• Supports Q-Flash and Q-Flash Plus

Unique Features

• GIGABYTE Control Center (GCC) support

• Norton® Internet Security (OEM) bundled

• LAN bandwidth management software

Form Factor & OS

• ATX (30.5 cm x 24.4 cm)

• Supports Windows 11 64-bit
