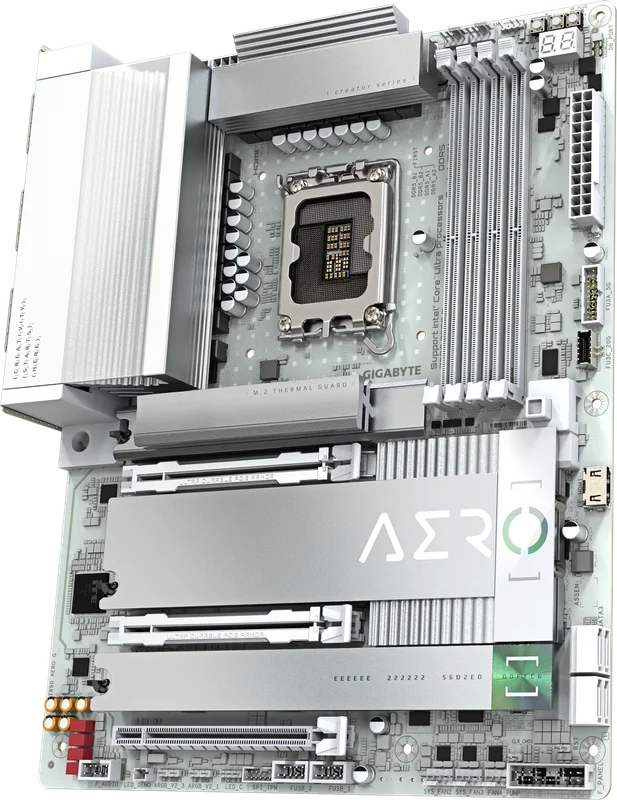

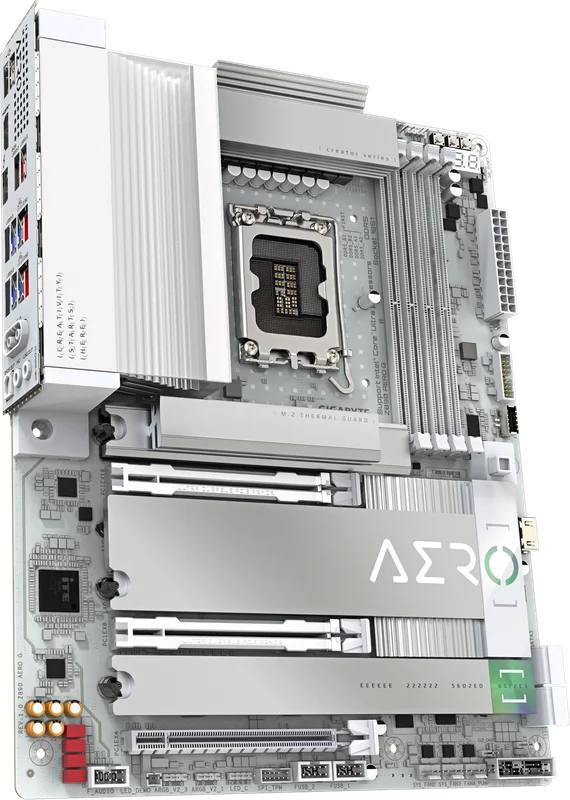

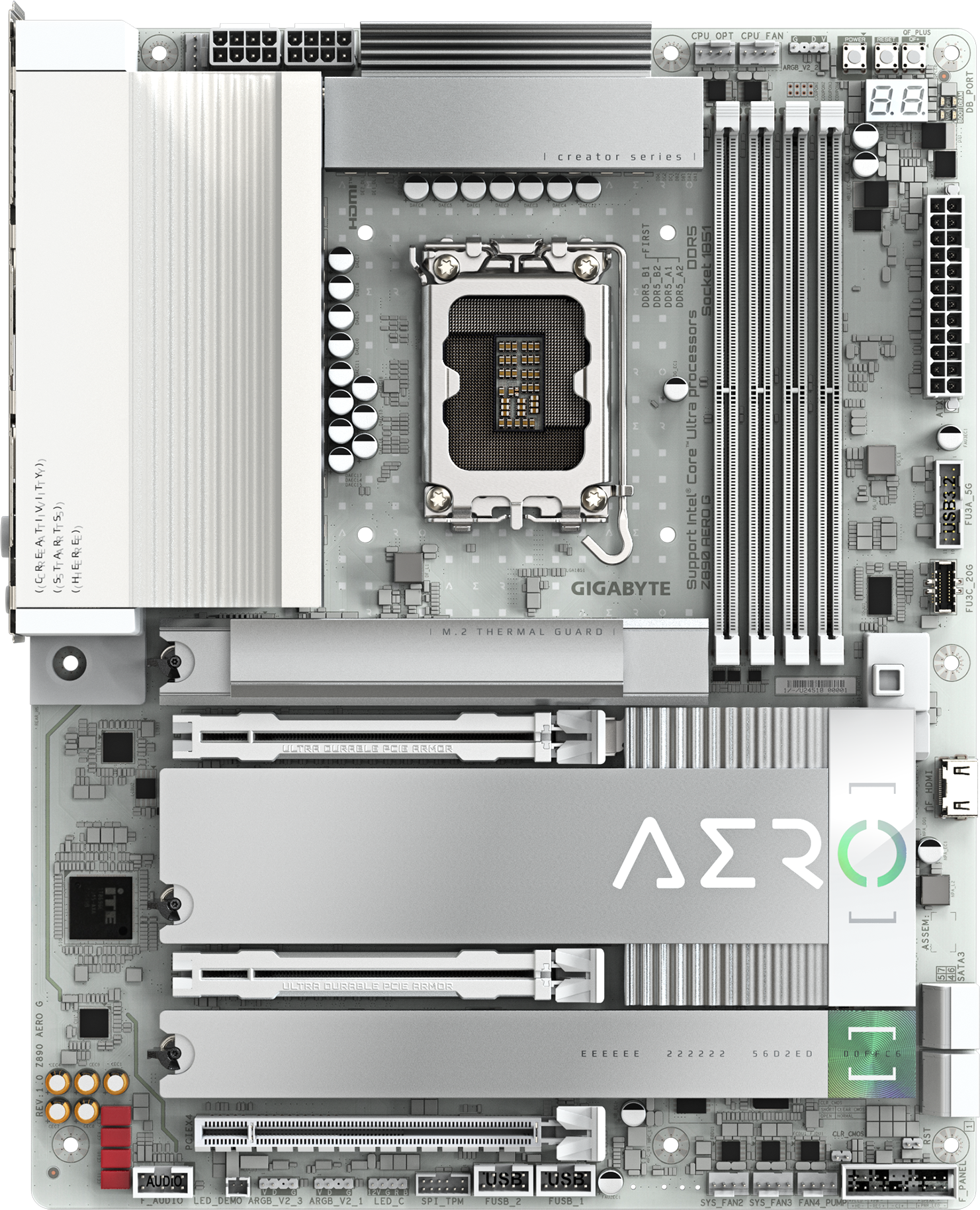

GIGABYTE Z890 AERO G LGA1851 DDR5 ATX Motherboard
Key Features:
-
Supports Intel® Core™ Ultra Processors with LGA1851 socket
-
Intel® Z890 Express Chipset for high-end performance
-
Supports DDR5 memory up to 9200 MHz (OC), max 256 GB capacity, dual channel
-
Integrated Intel® HD Graphics with Thunderbolt™ 4 and HDMI 2.1 ports
-
Realtek® ALC1220 High Definition Audio codec with 7.1 channel support
-
Dual Intel® 2.5GbE LAN and Intel® Wi-Fi 7 (802.11be) with Bluetooth 5.4
-
Multiple PCIe slots: PCIe 5.0 x16/x8 for GPU or NVMe SSDs, plus PCIe 4.0 x4
-
Extensive M.2 and SATA storage support with RAID 0/1/5/10 support
-
Thunderbolt™ 4 USB Type-C ports with up to 40 Gbps transfer speeds
-
Robust cooling with multiple fan and pump headers, plus RGB LED headers
-
Support for Q-Flash, Q-Flash Plus, and GIGABYTE Control Center software
-
Windows 11 64-bit compatible
-
ATX form factor (30.5 cm x 24.4 cm)
Specification | Details |
---|---|
CPU Socket | LGA1851, supports Intel® Core™ Ultra Processors |
Chipset | Intel® Z890 Express |
Memory Support | DDR5 5600 – 9200 MT/s (OC), 4 DIMMs, up to 256 GB, dual channel |
Integrated Graphics | Intel® HD Graphics, 1x Thunderbolt™ 4 (USB4 Type-C), 1x HDMI 2.1, 1x Front HDMI 1.4 |
Audio | Realtek® ALC1220, 7.1 channel HD audio, S/PDIF Out |
LAN | 2 x Intel® 2.5GbE ports |
Wireless | Intel® Wi-Fi 7 (802.11be), Bluetooth 5.4 |
Expansion Slots | 1x PCIe 5.0 x16, 1x PCIe 5.0 x8 (shares bandwidth), 1x PCIe 4.0 x4 |
Storage | 5x M.2 (PCIe 5.0/4.0/SATA), 4x SATA 6Gb/s, RAID 0/1/5/10 |
USB Ports | Thunderbolt 4 USB-C (40 Gbps), USB 3.2 Gen 2×2, USB 3.2 Gen 2 & Gen 1, USB 2.0 |
Internal Connectors | Multiple fan headers, RGB LED headers, power connectors, TPM header |
Form Factor | ATX (30.5 x 24.4 cm) |
