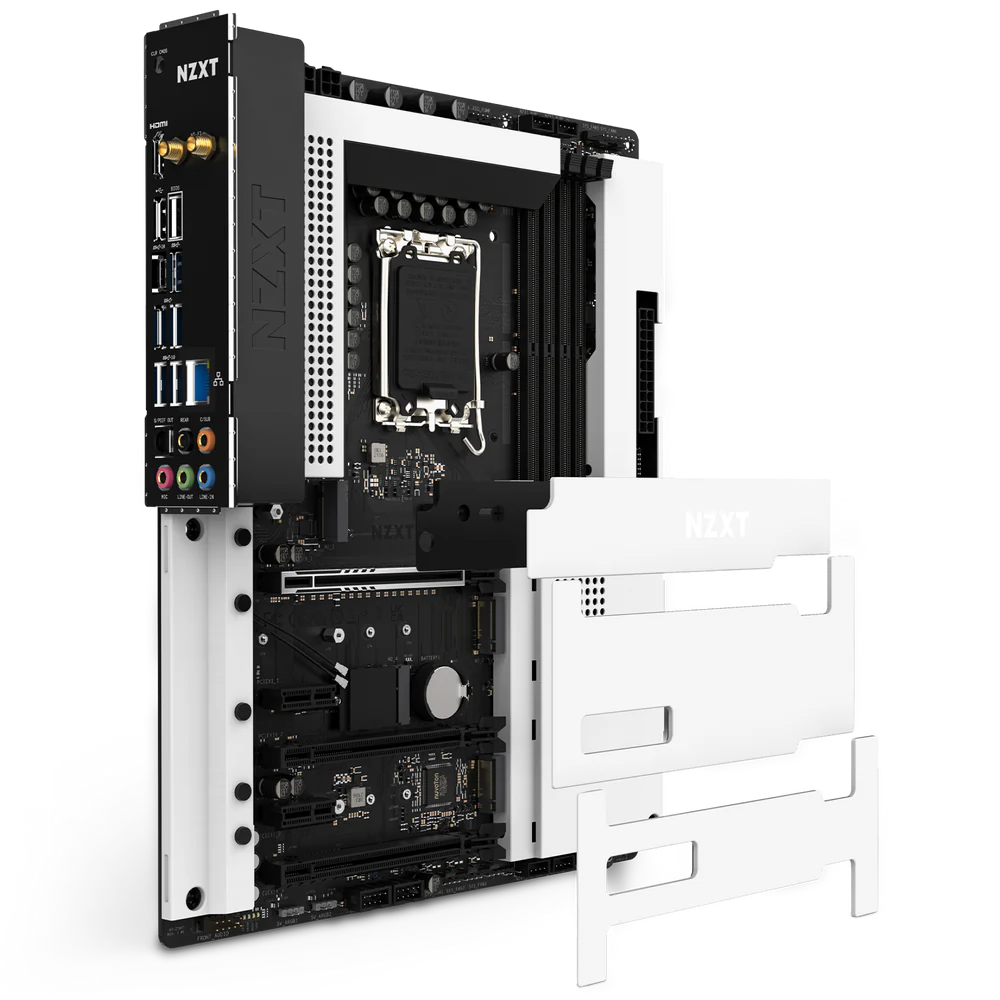

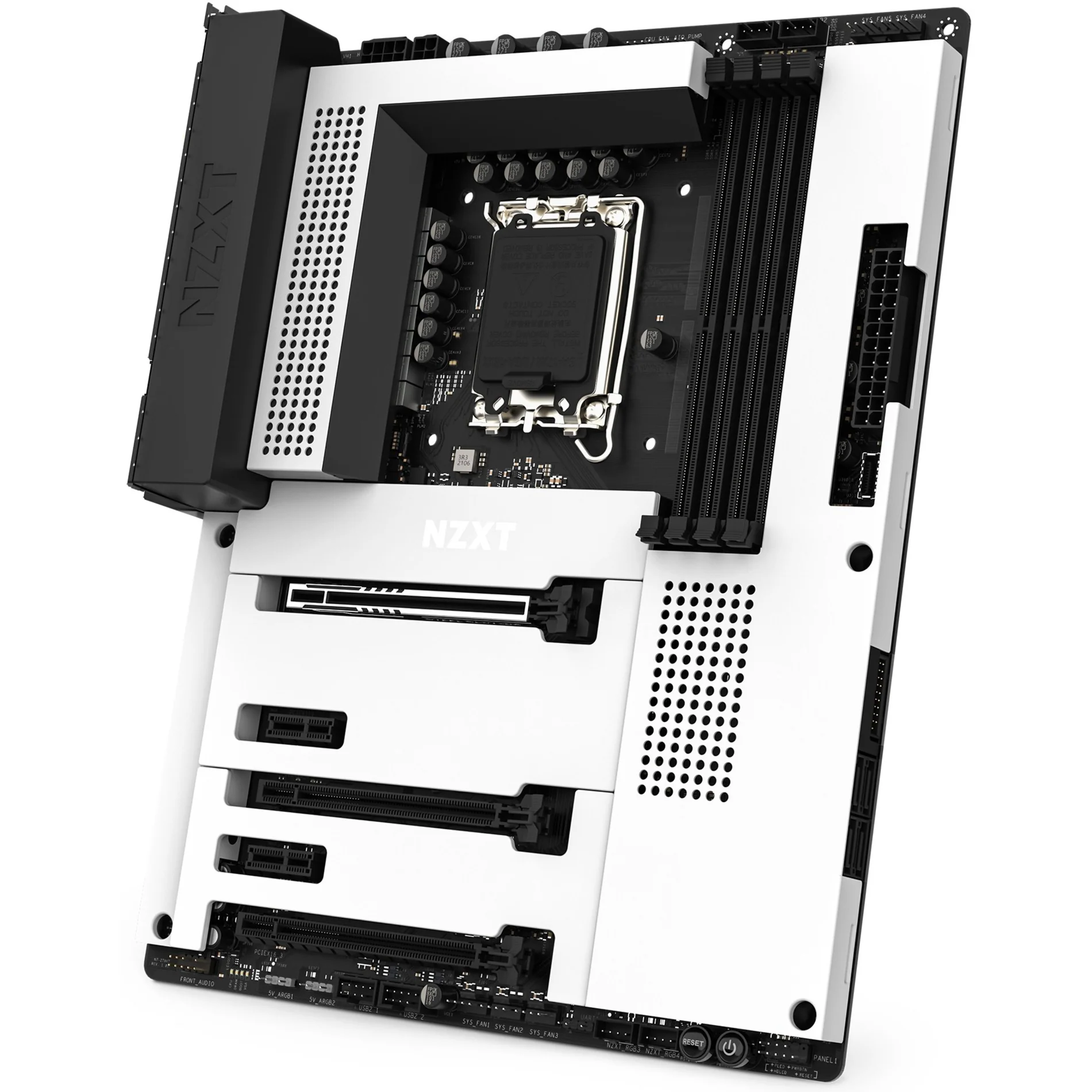

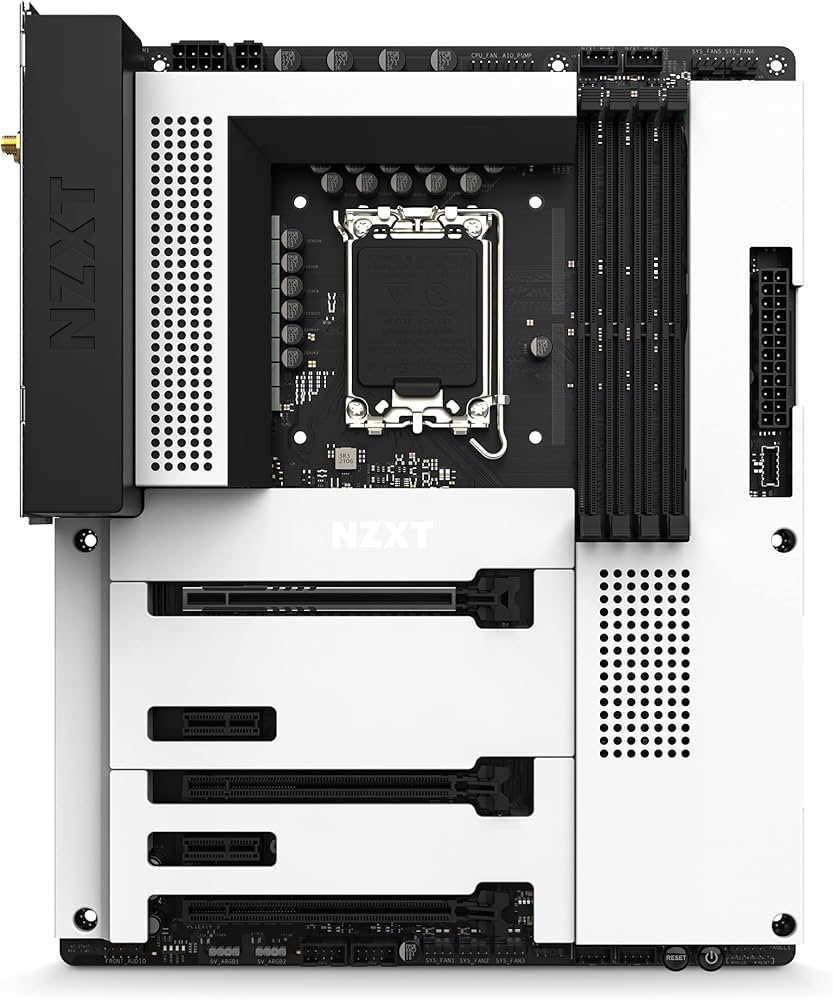

NZXT N7 Z790 White DDR5 ATX
Key Features
-
LGA1700 socket – Supports Intel® Core™ 14th/13th/12th Gen processors
-
Intel® Z790 chipset with full DDR5 and PCIe 5.0 support
-
DDR5 up to 7200+ MHz OC, 192GB max capacity
-
3x PCIe 4.0 M.2 + 4x SATA 6Gb/s, NVMe boot support
-
1x PCIe 5.0 x16 GPU slot + 4 expansion slots (PCIe 4.0 & 3.0)
-
Realtek® ALC1220 7.1 HD Audio + Optical S/PDIF Out
-
Realtek® 2.5G LAN + Wi-Fi 6E + Bluetooth 5.3
-
USB-C 20Gbps + USB 3.2 Gen2, Gen1, and USB 2.0
-
Elegant all-white metal shroud with integrated RGB & ARGB headers
Specifications
Category | Specification |
---|---|
CPU Socket | LGA1700 – Intel® Core™ 14th/13th/12th Gen |
Chipset | Intel® Z790 |
Memory | 4x DDR5 DIMMs, up to 192GB, 7200+ MHz OC, Dual Channel, XMP 3.0 |
GPU Output | 1x HDMI port (via iGPU) |
Audio | Realtek® ALC1220 Codec, 7.1 HD, Optical S/PDIF |
LAN / Wireless | Realtek® 2.5G LAN, Wi-Fi 6E, Bluetooth® 5.3 |
Expansion Slots | 1x PCIe 5.0 x16, 2x PCIe 4.0 x16, 2x PCIe 3.0 x1 |
Storage | 3x M.2 (PCIe 4.0/SATA), 4x SATA 6Gb/s, VMD, NVMe boot support |

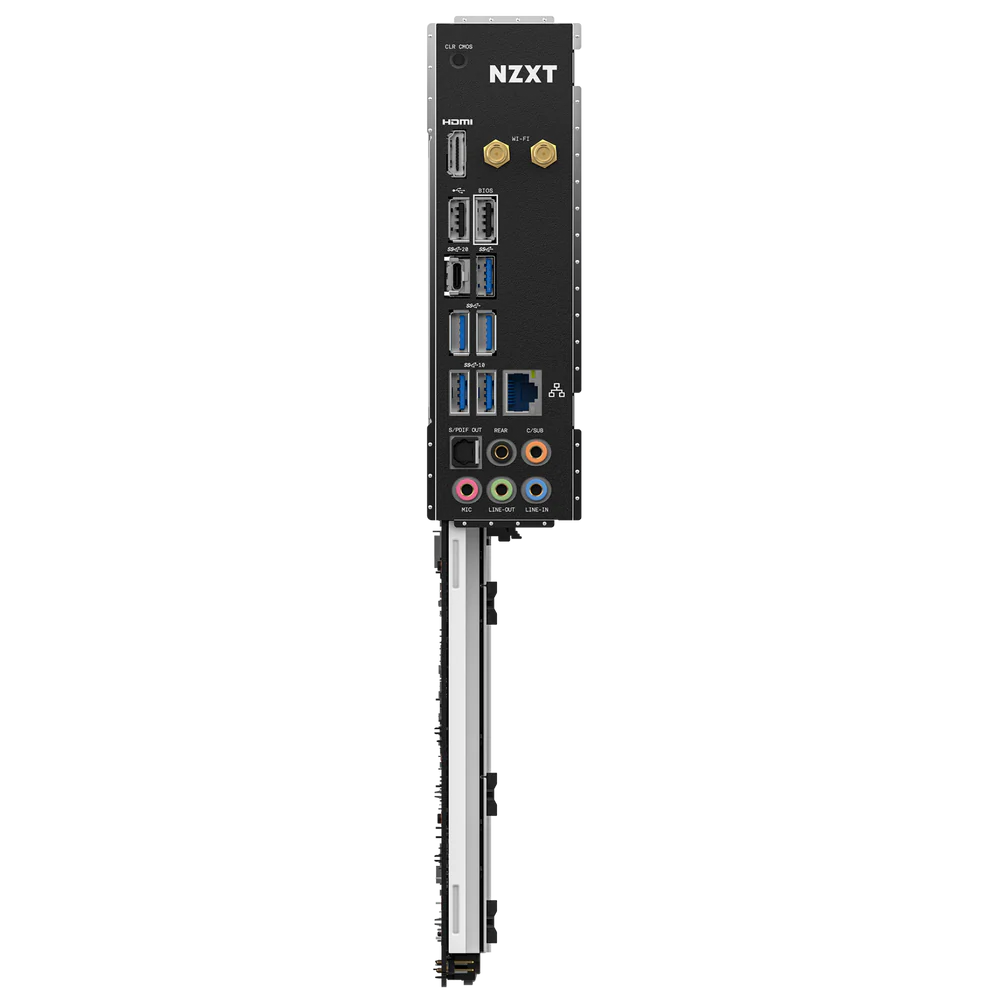

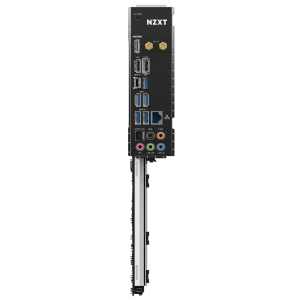

USB Rear | 1x USB-C 20Gbps, 2x USB 3.2 Gen2, 3x USB 3.2 Gen1, 2x USB 2.0 |
USB Internal | USB-C Gen2x2 header, USB 3.2 Gen1 header (2 ports), 2x USB 2.0 headers (4 ports) |
Internal Headers | 5x Fan, 4x NZXT RGB, 2x ARGB, audio, power/reset buttons, POST LEDs |
Form Factor | ATX (30.5 x 24.4 cm) |
OS Support | Windows® 11 / 10 64-bit |
