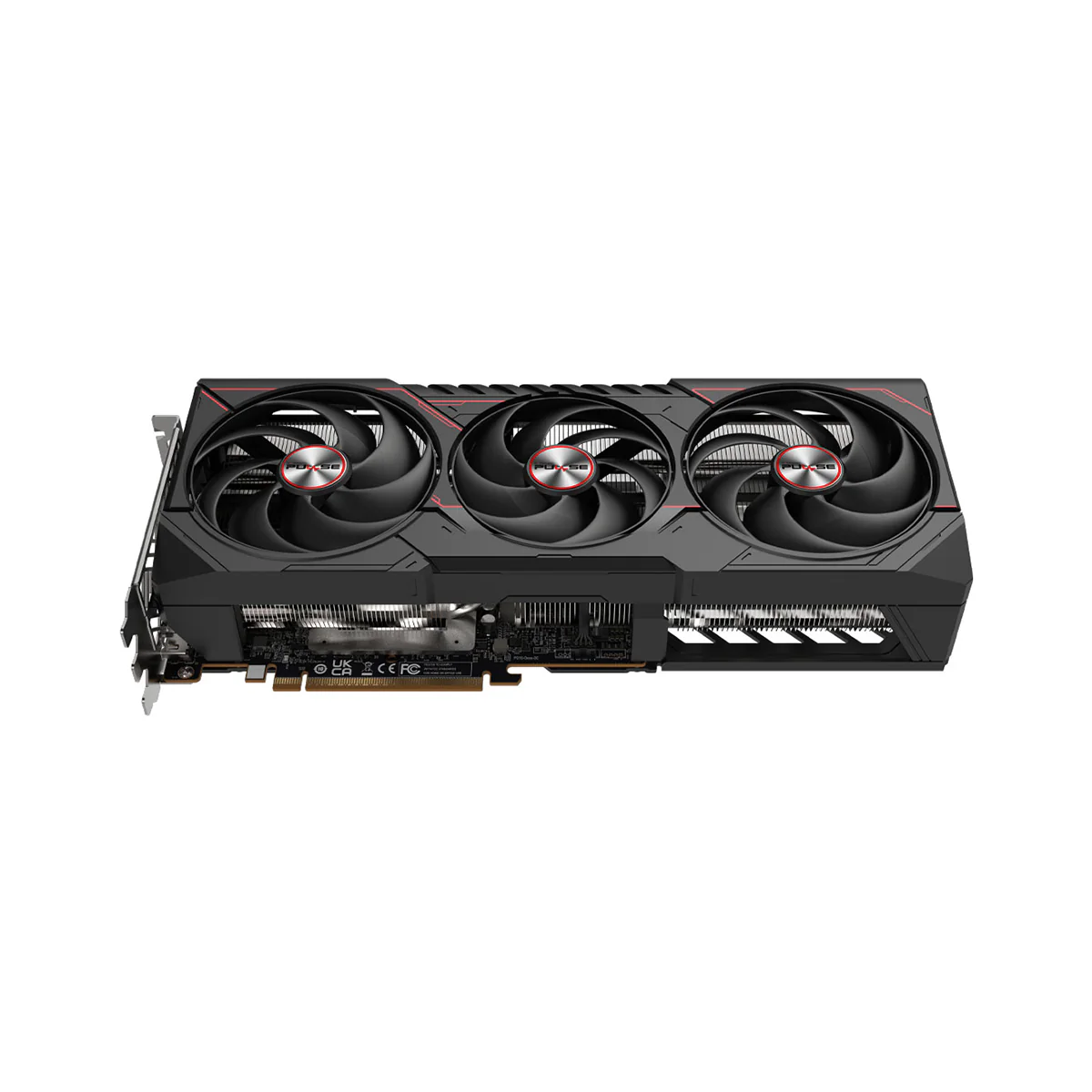

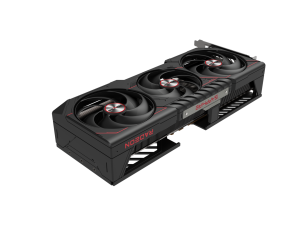

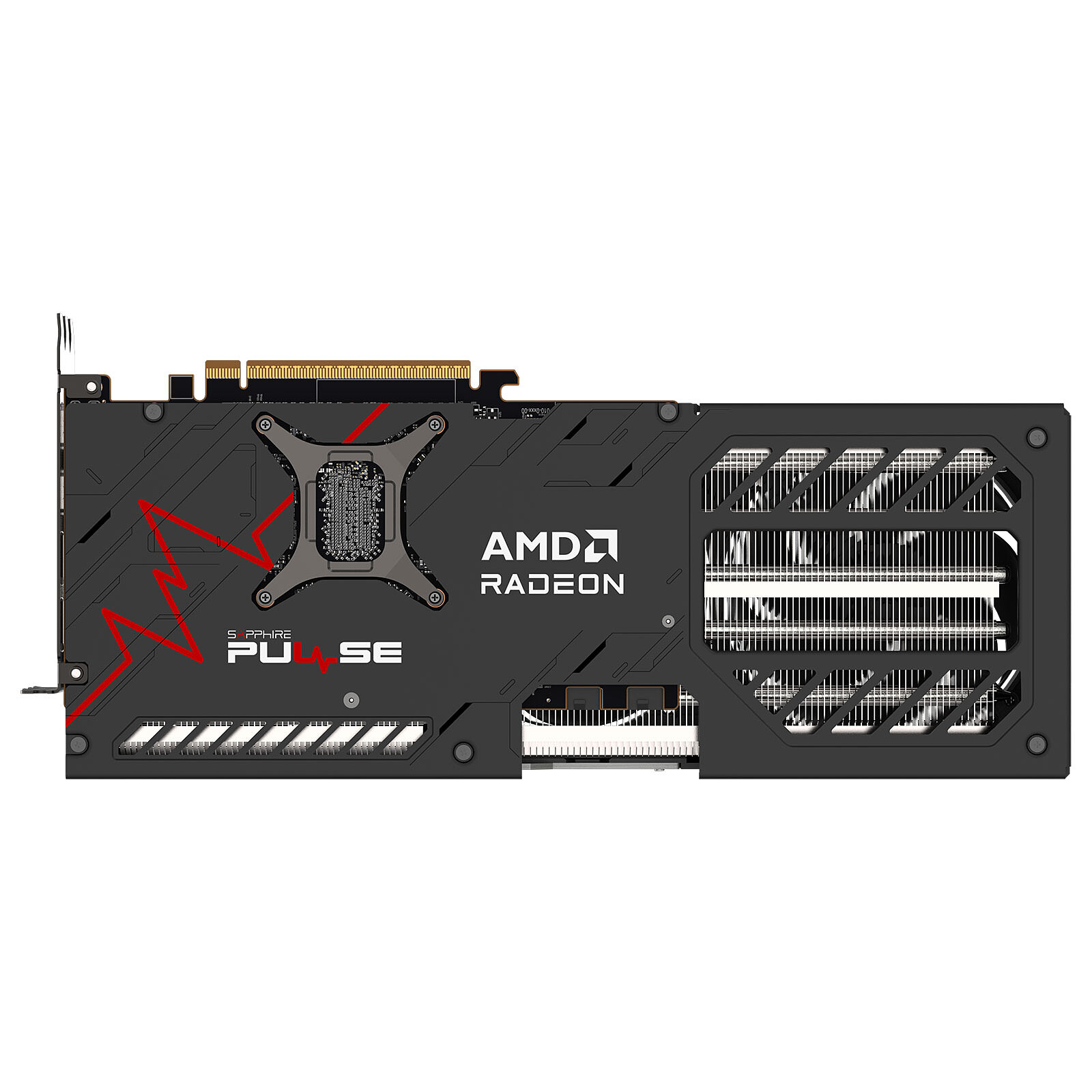

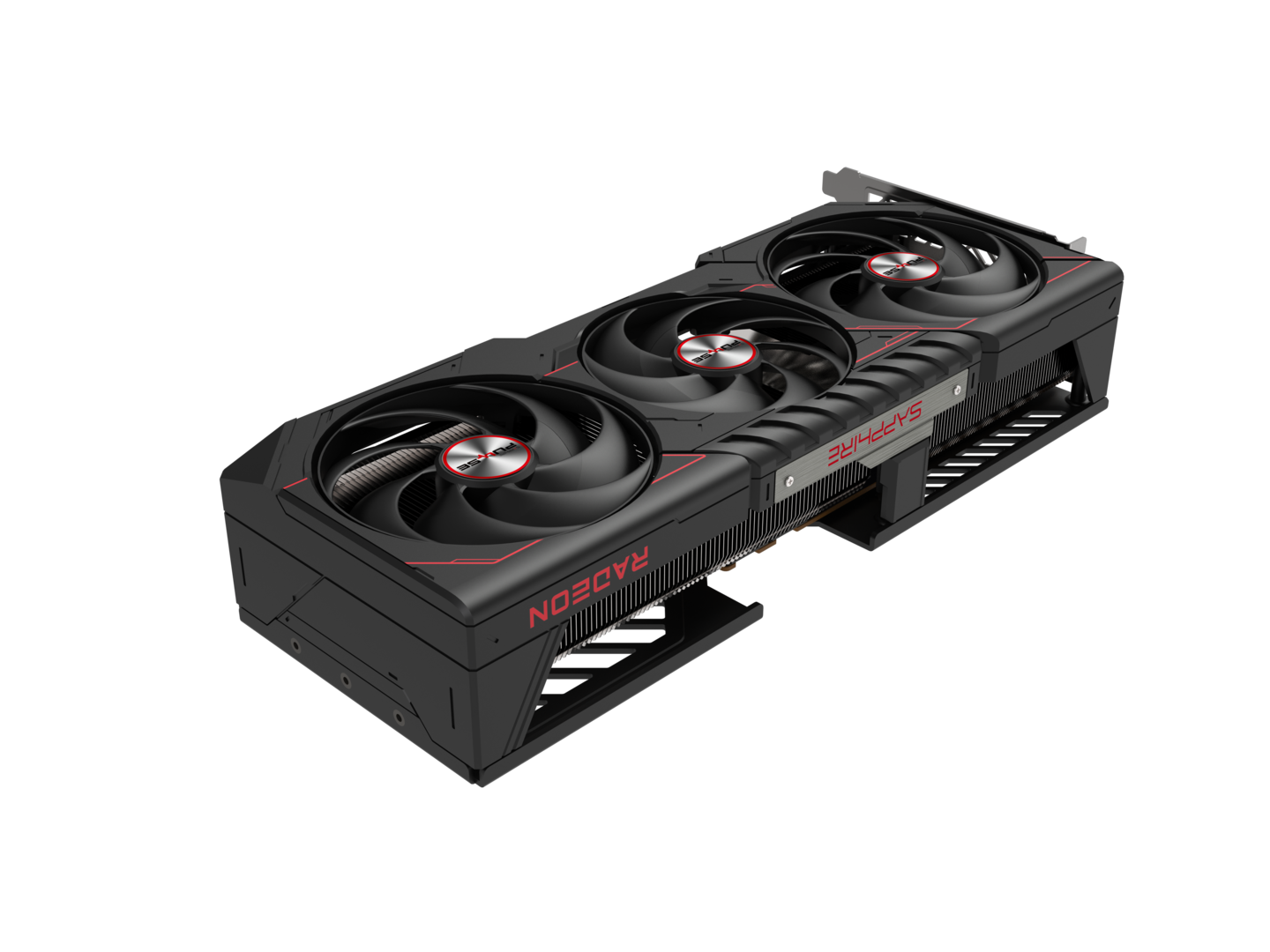

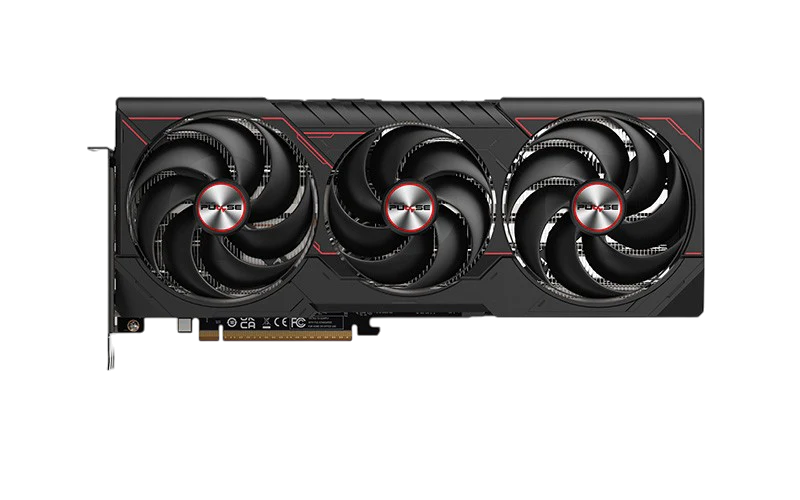

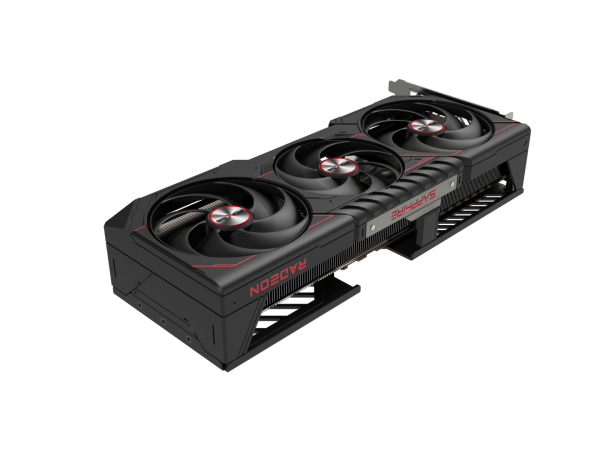

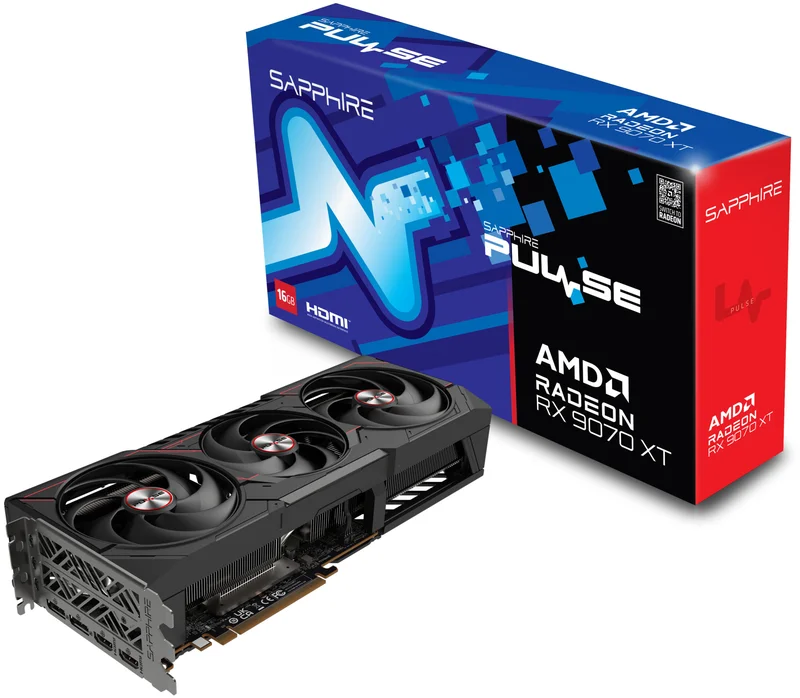

Sapphire AMD Radeon RX 9070 XT Pulse Gaming 16GB GDDR6 – Key Features
-
High-End RDNA™ 4 Architecture for next-gen performance
-
Boost Clock up to 2970 MHz, Game Clock up to 2400 MHz
-
16GB GDDR6 on a 256-bit bus, 20 Gbps effective speed
-
64 Compute Units, 64 Ray Accelerators, 128 AI Accelerators
-
Advanced Tri-X Cooling System with AeroCurve Fan Blade & Optimized Heatpipes
-
4 Display Outputs (2x HDMI®, 2x DisplayPort™ 2.1a) with max 8K support
-
PCIe 5.0 x16 Interface, UEFI BIOS, 14-phase digital power design
-
Comes with L-Shape Support Bracket and TriXX Boost software
-
4K Gaming Ready, AMD HYPR-RX, FSR 4.0, Anti-Lag 2, Fluid Motion Frames 2
Specifications
Specification | Details |
---|---|
GPU | AMD Radeon™ RX 9070 XT (RDNA™ 4 Architecture) |
Compute Units | 64 (3rd Gen RT + 2nd Gen AI Accelerators) |
Stream Processors | 4096 |
Ray Accelerators | 64 |
AI Accelerators | 128 |
Engine Clock | Boost: Up to 2970 MHz Game: Up to 2400 MHz |
Memory | 16GB GDDR6, 256-bit, 20Gbps effective |
Infinity Cache | 64MB |
Display Outputs | 2x HDMI®, 2x DisplayPort™ 2.1a |
Max Resolution | 7680×4320 (HDMI/DP) |
Display Support | Up to 4 displays |
Interface | PCI-Express 5.0 x16 |
Cooling System | Tri-X Cooling, Free Flow, AeroCurve Fan Blade |
Power Requirement | 750W PSU, 2x 8-pin connectors |
Power Consumption | 304W (typical) |
Form Factor | 3-slot, ATX (320 x 120.25 x 61.6 mm) |
OS Support | Windows 10/11 64-bit, Linux® |
Accessories | L-Shape Support Bracket |
Software | AMD Software: Adrenalin Edition™, TriXX Supported |
BIOS | UEFI |
