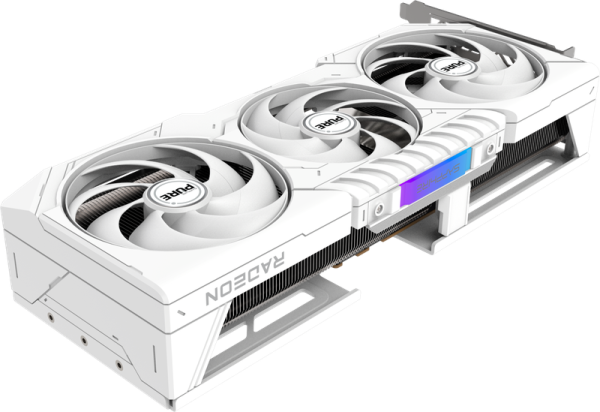

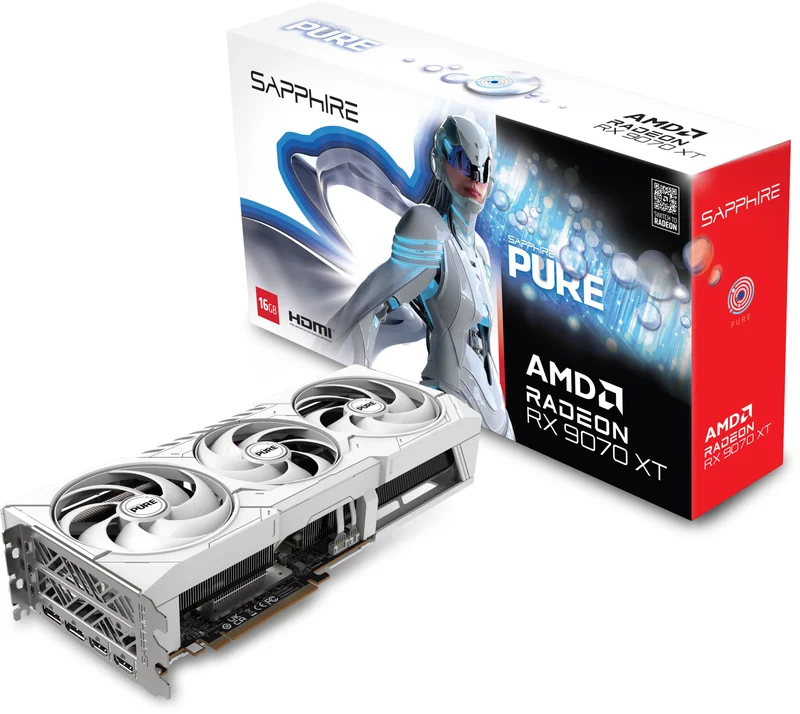

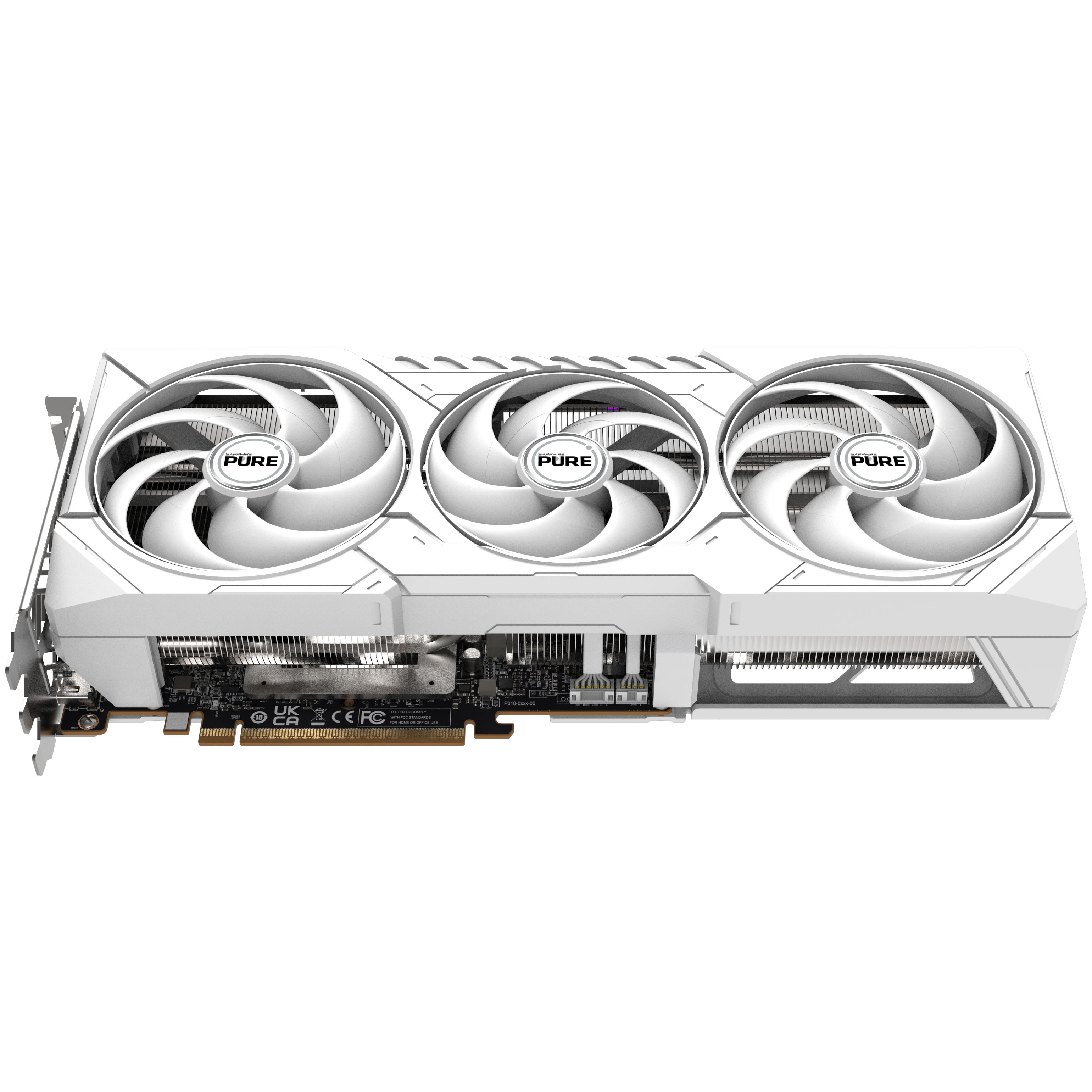

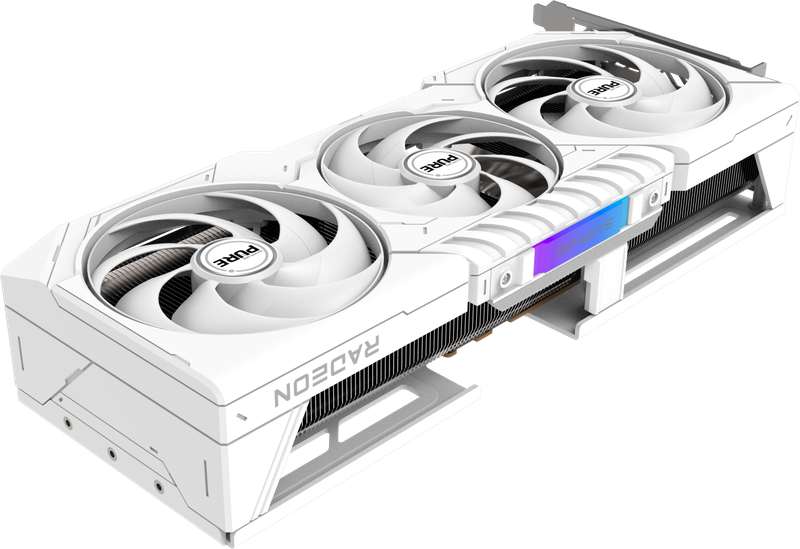

AMD Radeon™ RX 9070 XT – Extreme RDNA™ 4 Power for Next-Gen 4K Gaming
Built on the cutting-edge AMD RDNA™ 4 Architecture, the AMD Radeon™ RX 9070 XT unleashes the full potential of 4K gaming and AI-enhanced experiences. Equipped with 64 Compute Units, 64 Ray Accelerators, and 128 AI Accelerators, it delivers ultra-fast rendering, realistic ray tracing, and powerful AI-driven upscaling for the most demanding modern games and creative workloads.
Core Specifications
• GPU: AMD Radeon™ RX 9070 XT
• Architecture: AMD RDNA™ 4
• Compute Units: 64 CUs (3rd Gen RT + 2nd Gen AI Accelerators)
• Stream Processors: 4096
• Ray Accelerators: 64
• AI Accelerators: 128
• Game Clock: Up to 2460 MHz
• Boost Clock: Up to 3010 MHz
• Infinity Cache: 64MB
• Memory: 16GB GDDR6
• Memory Interface: 256-bit
• Effective Memory Clock: 20 Gbps
• Interface: PCI Express 5.0 x16
• Max Displays: 4 simultaneous outputs
• Max Resolution: 7680×4320 (HDMI & DisplayPort)
• BIOS Support: UEFI
• Game Index: 4K Gaming Ready
Cooling & Build Design – Tri-X Cooling with AeroCurve Fans

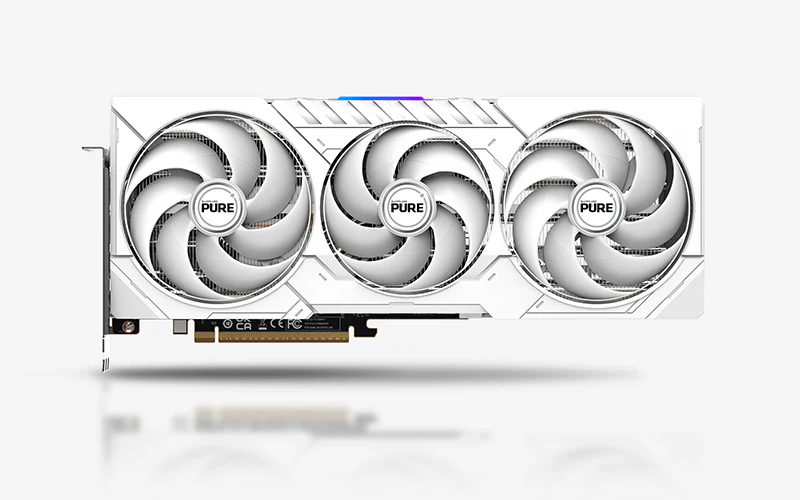

• Tri-X Cooling Technology – Powerful multi-fan cooling with efficient airflow
• AeroCurve Fan Blades – Enhanced air pressure and reduced turbulence
• Integrated Cooling Module & Optimized Composite Heatpipes
• Two-Ball Bearing Fans – Extended fan lifespan and quiet operation
• Honeywell PTM7950 Thermal Interface Material – Superior thermal transfer
• Free Flow & FrameDefense – Optimized airflow and board integrity

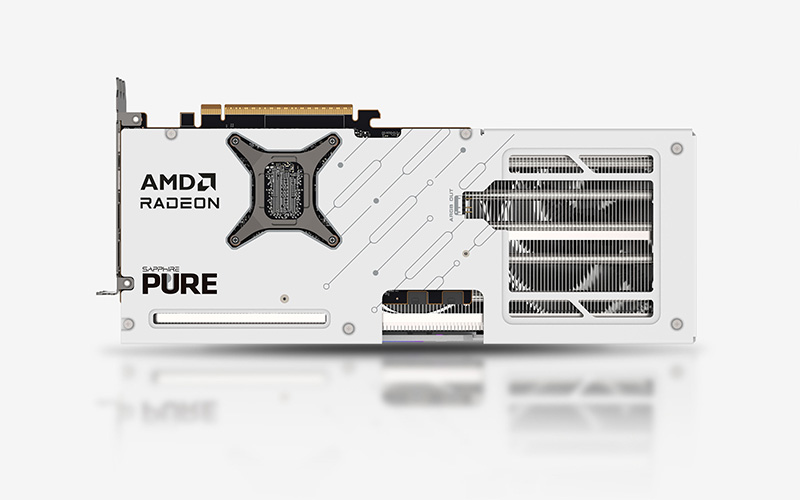

• Metal Backplate & High TG Copper PCB – Rigid construction for long-lasting durability
• 3-Slot Design – Dimensions: 320(L) x 120.25(W) x 61.6(H) mm
Power Requirements
• Typical Board Power: 317W
• Recommended PSU: 750W minimum
• Power Connectors: 2 x 8-Pin
Display Outputs
• 2 x HDMI®
• 2 x DisplayPort™ 2.1a
Sapphire Exclusive Features
• TriXX Software – Real-time performance tuning and RGB control
• TriXX Boost – Dynamic resolution scaling for higher FPS
• Glow! RGB Effects & ARGB Logo
• Performance vs. Efficiency Quicksets
• Intelligent & Precision Fan Control
• External RGB Sync – 3-pin 5V ARGB motherboard sync
• Included Accessories – L-Shape Support Bracket, ARGB Cable
AMD Feature Suite
• AMD HYPR-RX with AFMF 2 – Next-gen latency reduction and framerate enhancement
• FidelityFX™ Super Resolution 4 with AI Upscaling
• Fluid Motion Frames 2 & Anti-Lag 2
• AV1 Encode/Decode, AMD Radiance Display™ Engine
• Microsoft® DirectX® 12 Ultimate, AMD Noise Suppression
• AMD Freesync™ Technology
• AMD Software: Adrenalin Edition™ – Intuitive control and driver management
System Compatibility
• Supported OS: Windows® 10/11 (64-bit), Linux®
• System Requirements: PCIe x16 slot, Minimum 8GB RAM (16GB recommended)
