ZOTAC GAMING NVIDIA GeForce RTX 5080 SOLID OC 16GB GDDR7

Extreme 4K Performance with Cutting-Edge Blackwell Architecture

Graphics Engine: NVIDIA GeForce RTX 5080
Architecture: NVIDIA Blackwell (4nm)

Core Performance

CUDA Cores: 10752
Engine Clock: Boost Clock up to 2640 MHz
Memory: 16GB GDDR7
Memory Clock: 30 Gbps Effective
Memory Bus: 256-bit
Infinity Cache: Not Applicable

Ray Tracing & AI Features

Ray Accelerators: Dedicated RT Cores
AI Accelerators: NVIDIA Tensor Cores
DLSS: NVIDIA DLSS 4 with Multi-Frame Generation
Reflex Technology: NVIDIA Reflex 2 with Frame Warp

Display & Connectivity

Maximum Supported Displays: 4
Maximum Resolution:

• DisplayPort 2.1b: Up to 7680×4320 (8K) at 165Hz with DSC

• HDMI 2.1b: Up to 7680×4320 (8K) at 60Hz HDR, 4K at 120Hz HDR

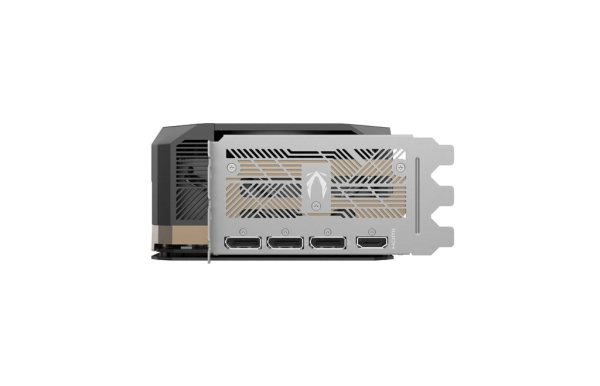

  Outputs:

• 3 x DisplayPort 2.1b

• 1 x HDMI 2.1b
  HDCP Support: 2.3

PCI & Power Requirements

Interface: PCI-Express 5.0 x16
Power Consumption: 360W
Recommended PSU: Minimum 850W
Power Connectors: 1 x 12V-2×6 Power Input

Cooling & Build

Cooling System: IceStorm 3.0 with larger vapor chamber and BladeLink fans
Slot Size: 3.5-slot
Build Quality: Reinforced Metal Mid-Frame & Metal Die-Cast Backplate
Advanced Cooling Features:

• FREEZE Fan Stop for silent operation

• Active Fan Control with Dual BIOS

• SPECTRA 2.0 RGB Lighting with SPECTRA LINK Sync

Software & OS Support

DirectX: Microsoft DirectX® 12 Ultimate
OpenGL: 4.6
Supported OS: Windows 11 / Windows 10 (64-bit, v1809 or later)

Bundled Accessories

• User Manual

• 3 x 8-pin-to-16-pin Cable

• SPECTRA LINK Cable

• GPU Support Stand
